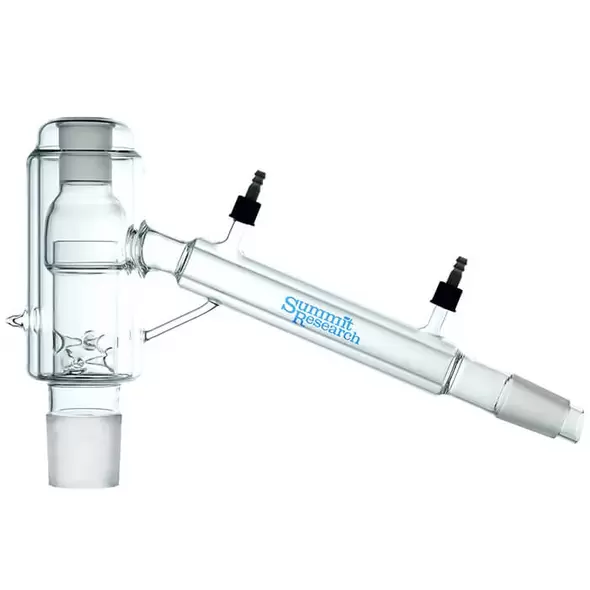

Short Path Distillation Head FC55

In stock
0.00
(0 reviews) Write a review
66FAD90AF060C
$2,19999
Chat Now
  • Main Bore: Features a 55/50 main bore for optimized distillation processes.
  • Discharge & Thermoport: Includes 34/45 discharge and thermoport for secure operation.
  • No Vigreux: Designed to minimize material rejection without a vigreux column.
  • Head Keys: Includes 10 Band and 7 Band head keys for customized distillation control.
  • High-Efficiency: Patented technology rivals wiped film systems for speed and clarity.
  • Pump Options: Configurable with 5L, 12L, or 22L boiling flask and diffusion setups.
  • Schott Glass: Made with thicker, durable Schott glass for reliability and longevity.

Tell us what you need

+
Short Path Distillation Head FC55
In stock
0.00
(0 reviews) Write a review

Reviews

Average Star Rating:
0.00 (0 reviews Total)
  • 5 stars
    0
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
Have you used the product?
Tell us something about it and help others make the right decision
Show reviews with:
5 stars (0 reviews)
4 stars (0 reviews)
3 stars (0 reviews)
2 stars (0 reviews)
1 star (0 reviews)

No reviews found

Description

The Short Path Distillation Head FC55 Nano, formerly known as the SPD-6 FC55 Nano, is an advanced distillation head designed for precise and efficient short path distillation processes. This model includes a 55/50 main bore, a 34/45 discharge, and a 34/45 thermoport for optimal distillation performance. Engineered by Summit Research, the FC55 Nano is crafted for professionals seeking high purity and clarity in their distillates, with the added benefit of minimizing material rejection.

Optimized for Minimal Rejection

The FC55 Nano stands out in the market for its minimal material rejection, a feature made possible by the absence of a vigreux column. This enhances the precision of the distillation process by ensuring that the rejection of unwanted materials is kept to an absolute minimum. However, this can be adjusted based on the distillation needs with the right head key, which is now included in the package for enhanced flexibility.

Included Components:

  • Head Key Well 10 Band 34/45 – Provides optimal performance and flexibility during distillation.
  • Head Key 7 Band 34/45 – An additional tool for fine-tuning the distillation process.
  • Stopper 34/45 – Ensures a secure and airtight distillation setup.
  • High Temp GL14s – These are included to handle high temperatures during the distillation process.

Summit’s Cutting-Edge Distillation Technology

When Summit Research first introduced the fraction collector technology, it revolutionized the distillation industry by offering unparalleled efficiency at a fraction of the cost. The FC55 Nano head is built with Summit’s patented distillation technology, allowing it to rival the speeds and performance of wiped film distillation systems. The result is superior clarity, purity, and operational speed, even at low temperatures.

Summit Research’s heads are retrofitted to incorporate this technology, giving laboratories access to high-performance equipment that delivers consistent results, day after day. These heads are capable of high-speed, high-potency, and low-temperature distillations unmatched by competing products on the market.

Height and Performance Variability Across the FC Series

The FC55 series heads are differentiated by their heights, each offering unique operational benefits:

  • Lower height heads: Provide faster speeds and operate at lower temperatures but offer less selectivity.
  • Taller heads: Operate at slightly higher temperatures with increased selectivity but at slower speeds.

The FC55 Nano pairs with Summit's laminar path technology and optional inverted cup cold traps or hardpipe kits to ensure smooth, fast, and consistent clarity with every distillation cycle.

Pump Setup Options for Flexibility

Summit Research offers two primary setup options for the FC55 Nano model, depending on the volume and operational needs:

  1. SPD-6 FC55 Diffusion Mixed Setup: Suitable for using 5L, 12L, or 22L boiling flasks.
  2. SPD-6 FC55 Complete Setup: Ideal for operations utilizing the 22L boiling flask and diffusion pump.

These options allow laboratories to tailor their equipment to their specific needs, ensuring maximum efficiency and performance.

Superior Quality with Schott Glass

Summit Research is known for using premium Schott glass, which is manufactured in the USA. All glassware used in the FC55 Nano is thicker than industry standards, ensuring durability and long-lasting performance under high-intensity conditions. This focus on quality guarantees that Summit glassware will provide efficiency, precision, and reliability for every short path distillation process.

Safety Recommendations

As with all high-performance lab glassware, Summit Research strongly advises that users operate within a ventilated fume hood with sufficient blast shielding to ensure safety in the event of glass fatigue or failure. While Summit builds its glassware to exceed durability standards, proper safety precautions must be in place to protect users and the environment from potential damage.

Summit Research disclaims any responsibility for failures or damages caused by improper use of their products. It is critical that users operate in licensed and legal laboratory facilities, prioritizing safety above all.

Features

Size:
Tall

View all variations as list

  CODE Size Availability Price
Short Path Distillation Head FC55 Nano
In stock
$2,19999
Short Path Distillation Head FC55
66FAD90AF060C
Tall
In stock
$2,19999
Short Path Distillation Head FC55
66FAD9076954C
Shorty
In stock
$2,19999
