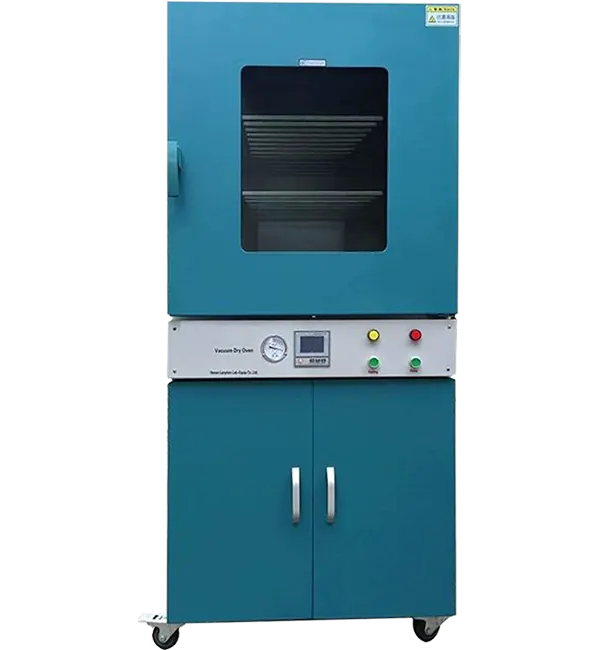

500L Vacuum Oven with Drawer - PURE5™

Vacuum Oven

• Volume: 18 Cu. Ft (500L)
• Interior: 630 x 810 x 845 mm
• Shelving: 4 each
• Vacuum: 0.089 Mpa
• Material: SS 1Cr18Ni9Ti
• Weight Capacity: 65 lbs

Temperature

• Range: 10°C to 250°C
• Temp Stability: 0.1°C ± 1°C
• Pressure: -5°C to 40°C

Power

• Power: 4000 W
• Voltage: 208V – 240V, 26A

Mesh bags

• Mesh Bags: 4 Temp Rated
• Fits: up to 8 mesh bags
• Dimensions: 699 mm x 546 mm
• Material: Polypropylene (PP)
• Melt Temperature: 161°C (363°F)
• Softening Point: 152°C (305°F)
• Heat Deflection Temperature: 90°C (194°F)
• Glass Transition Temperature: 0°C (32°F)

Certifications

• ISO 9001

Skid Physical Dimensions

• Height: 930 mm
• Length: 1050 mm
• Width: 1990 mm
• Total weight: 565 lbs (256 kg)
• Floor mounting area. min. 10 m2
• Ceiling height. 2.5 m
• With Vacuum Pump
