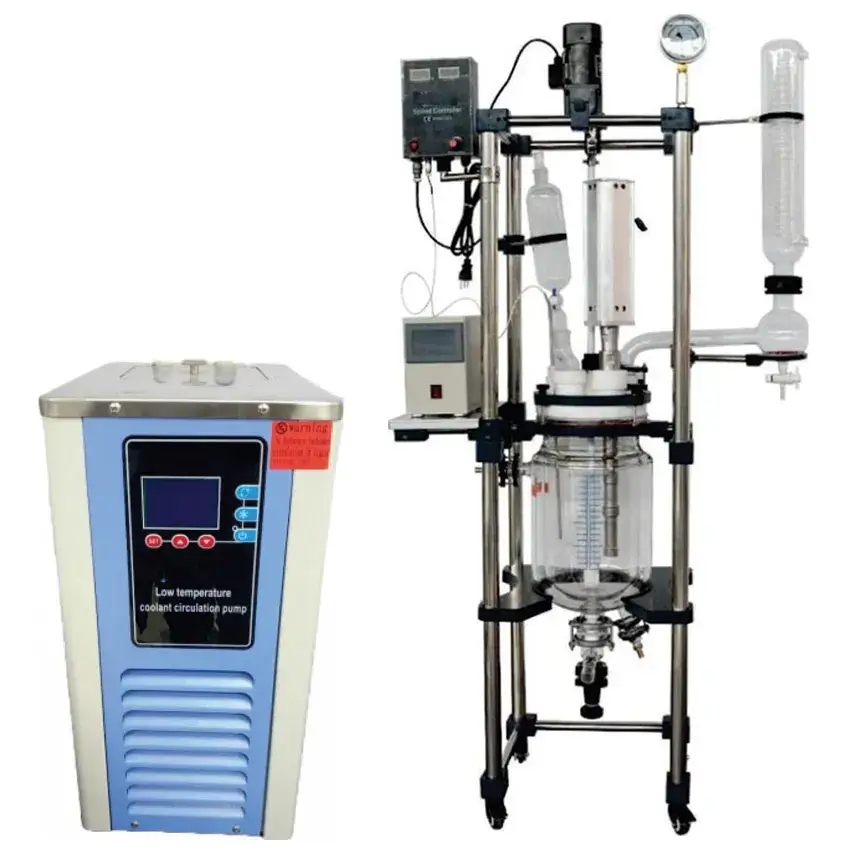

30L Ultrasound Extraction - PURE5™

Reaction Vessel

• Reaction Volume: 30 L
• Biomass: 3-7 lb per batch
• Stirring speed: 0-450 rpm
• Speed control: Continuous
• Sitr axle diameter: 12 mm
• Digital display: LCD
• Temperature sensor: PT I 00
• Sealing: PTFE
• Stir rod coating: PTFE
• Voltage: 220V/60Hz, Ip
• Power: 120 W
• Dimension: 760*560*2300 mm
• Weight: 88 kg

Solvent Receiver

• Orientation: Horizontal
• Maximum Solvent Content: 32 Kg

Ultrasound Agitator

• Ultrasonic Power: 3000 W
• Ultrasonic Frequency: 20 kHz

Vacuum Pump

• Vacuum degree: 0.098 Mpa
• Voltage: AC220V/50Hz
• Power: 370 W
• Flow rate: 80 L/min
• Pump lift: 12 M
• Pump taps: 5
• Suction rate: IO L/min
• Capacity: 50 L

Chiller

• Volume: 30 L
• Lowest temp: -30°C
• Refrigerating capacity (W): 3729-180 I
• Flow: 20 L/min
• Accurate: ±0.5°C
• Voltage: 220V/60Hz

Storage and Filters

• Glass Materials: GG-17
• Support Frame: Stainless Steel
• Flask Volume: I O L
• Funnel Size: 350*220 mm
• Dimension: 490*490* 1500 mm

Physical Dimensions

• Height: 1400 mm
• Length: 2500 mm
• Width: 1500 mm
• Total weight: app. 200 kg
• Floor mounting area: min. 5 m²
• Ceiling height: 3.0 m

Control System

• Functions: Semi Automatic Programmable Logic Controller (PLC) functionality and user programmable stirring speed, temperature, and time.
