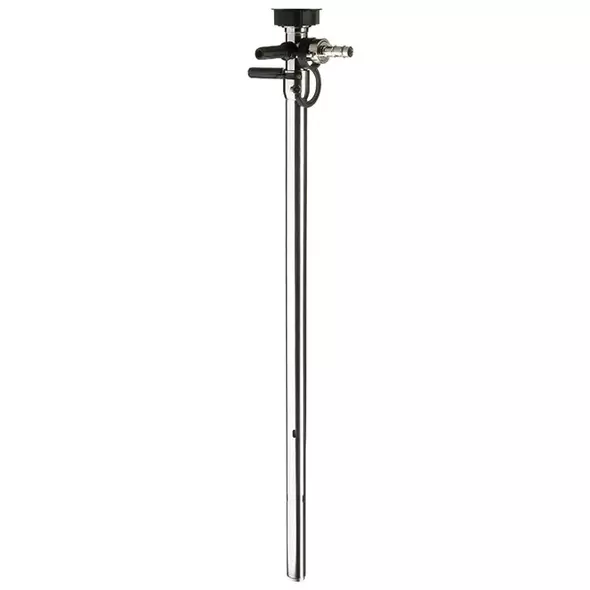

F426 Mixing Pump

The F426 Mixing Pump is specifically engineered to address the challenge of fluids that tend to separate or settle over time. Ideal for use in various industrial and chemical processing applications, the F426 uniquely offers dual capabilities—efficient pumping coupled with highly effective mixing. Its innovative design allows users to quickly and seamlessly shift between pumping and mixing modes, providing a flexible, all-in-one solution for liquids that require consistent agitation or gentle handling.

Industries utilizing emulsions, paints, inks, dispersions, suspensions, solvents, or other two-phase mixtures greatly benefit from the multifunctional capabilities of the F426 Mixing Pump. Available in robust material options, including stainless steel and polypropylene, the F426 addresses diverse operational demands while ensuring long-term durability and reliability, even in challenging environments.

Innovative Features of the F426 Mixing Pump

Versatile Operating Modes

The versatile F426 Mixing Pump provides three primary operating modes:

• Conveying: Standard pumping operation for fluid transfer.
• Conveying with Simultaneous Mixing: Allows constant agitation of liquids while pumping.
• Temporary Pure Mixing Operation: Operable as a mixer with the outlet closed (e.g., via a hand nozzle) for effective rehomogenization.

This versatility ensures the product remains thoroughly mixed, preventing settling, separation, and product inconsistency, thereby improving overall operational quality.

Efficient and User-Friendly Controls

Two intuitive control levers allow operators to effortlessly open or close the integrated mixing openings, quickly switching between pumping and mixing modes. These convenient controls significantly enhance operational efficiency and ensure precise adjustments during fluid handling processes.

Rapid and Effective Mixing

The pump features specially designed mixing openings that facilitate backflow into the container. This unique capability ensures the fluid is continuously and thoroughly mixed, significantly improving product consistency and quality, especially for products prone to separation or settling.

Key Features and Advantages

Robust Material Construction

Constructed from durable Polypropylene or Stainless Steel, the F426 Mixing Pump is capable of handling a wide range of viscosities from less than 1 up to 1200 cPs, making it highly adaptable for diverse applications and challenging operational environments. The stainless steel variant is suitable for hazardous environments, ensuring compliance with stringent safety requirements.

Reliable and Durable Mechanical Seal

The pump’s robust mechanical seal ensures leak-free operation, providing reliable performance even under continuous, demanding conditions. This increases operational safety and reduces downtime due to maintenance and repairs.

Compact Design and Easy Handling

With outer tube diameters ranging from 40 mm to 50 mm and standard immersion lengths of 39, 47, or 60 inches (1000, 1200, 1500 mm), the F426 Mixing Pump fits conveniently into diverse container sizes. Its compact form factor simplifies installation and enhances portability, providing ease of operation across different production areas.

Simple and Convenient Operation

Two clearly marked control levers enable straightforward operation, allowing the operator to easily open or close mixing openings as required. Additionally, switching between pumping and mixing functions is effortless, enhancing operational flexibility and productivity.

Broad Fluid Compatibility

The F426 efficiently handles emulsions, dispersions, suspensions, solvents, fuels, paints, inks, and many other fluids with viscosities up to 1200 cPs. Its material construction in polypropylene or stainless steel allows safe handling of both aggressive and sensitive media, accommodating a wide variety of industrial requirements.

Technical Specifications

• Maximum Flow Rate: 31 GPM
• Maximum Delivery Head: 42 ft
• Viscosity Range: <1 – 1200 cPs
• Material Options: Polypropylene, Stainless Steel
• Immersion Lengths: 39 in, 47 in, 60 in (1000, 1200, 1500 mm)
• Outer Tube Diameter: 40 mm – 50 mm
• Mechanical Seal: Leak-free mechanical sealing
• Enclosure Rating: Suitable for hazardous areas (metallic versions)
• Operational Modes: Pumping, Pumping with Mixing, Temporary Mixing Operation
• Maximum Product Temperature: 212°F (100°C)

Recommendations

The F426 Mixing Pump is a highly recommended solution for applications requiring simultaneous mixing and pumping of settling or separating liquids. Its superior design, ease of operation, and flexible functionality make it invaluable for maintaining product consistency in industries such as chemical processing, pharmaceuticals, paints, coatings, and general industrial manufacturing. Companies aiming for improved product quality, reduced maintenance, and increased productivity will benefit significantly from the unique capabilities and reliability offered by the F426 Mixing Pump.
