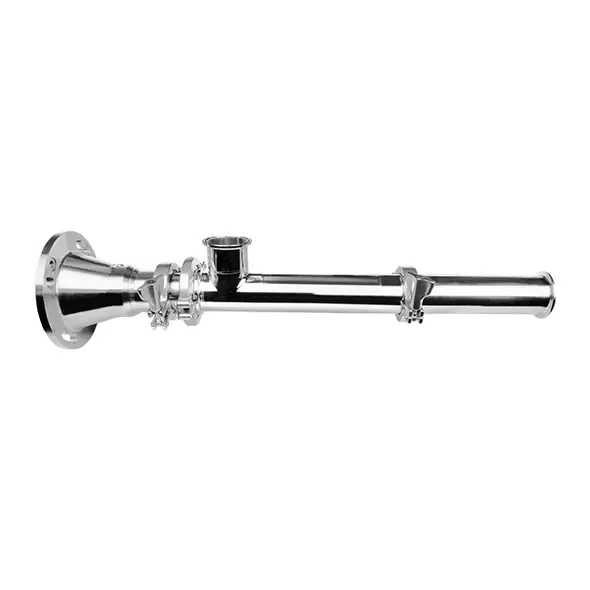

F580 Tr Horizontal Pump For Industrial Applications With Bearing Flange For Horizontal Mounting For Liquids Up To 100,000 Cps

In stock
0.00
Brand: FLUX Pumps
Request Quote

Shipping & Policies

Estimated Delivery This delivery estimate is based on the time it will take for the seller to ship out your order and for the carrier to deliver it.
Ships from United States

Sold by FLUX Pumps

Returns: 30 days refund/replacement You can return any item within 30 days of delivery for a full refund or replacement, as long as it's unused and in its original packaging. Some products may be subject to restocking fees—see our return policy for full details.

Payment: Secure Transaction All payments are handled via industry-standard encryption and fraud protection. Your card details are never stored by us, and you’re covered by buyer-protection policies for a worry-free checkout.

  • Smooth Pumping: Progressive cavity design ensures gentle, pulsation-free transfer.
  • High Viscosity Handling: Pumps fluids up to 100,000 cPs with ease.
  • Horizontal Installation: Ideal for tanks and containers not accessible from the top.
  • Easy Maintenance: Modular system allows quick disassembly and servicing.
  • Adjustable Flow Rate: Compatible with frequency-controlled motors for precise control.
  • Robust Construction: Stainless steel build with electropolished finish.
  • ATEX Certified: Available for use in hazardous environments.
  • Mobile or Fixed Use: Can be mounted on a cart or installed on a base plate.
  • Temperature Resistant: Operates up to 248°F (120°C).

Tell us what you need

Banner Image

SELL MORE
WITH GROWCYCLE

Join as a seller and connect with thousands of B2B buyers nationwide!

Sign Up

Description

The FLUX VISCOPOWER F580 TR industrial progressive cavity pump is a specialized solution designed for horizontal installation, making it ideal for transferring highly viscous products and fluids that are just capable of flowing. Engineered with a bearing flange for stability and efficiency, this positive displacement pump provides smooth, pulsation-free fluid transfer at constant pressure. It can be mounted on a cart for mobile use or secured onto a base plate for integration into industrial processes. The F580 TR version is also used with VISCOFLUX Mobile S drum unloading systems, further expanding its application range. With its modular design and minimal components, the pump is easy to dismantle, clean, and service.

Key Features and Benefits

Superior Pumping Performance

The FLUX VISCOPOWER F580 TR operates as a progressive cavity pump, ensuring a steady, controlled, and low-shear liquid transfer.

  • Pulsation-Free Operation: Guarantees smooth and uniform fluid flow without sudden fluctuations.
  • Handles Extremely High Viscosities: Suitable for substances up to 100,000 cPs.
  • Adjustable Flow Rate: Can be controlled precisely when combined with a frequency-controlled three-phase motor.
  • Constant Pressure Transfer: Ensures a stable and efficient pumping process.

Designed for Horizontal Installation

Unlike traditional vertical pumps, the FLUX VISCOPOWER F580 TR is installed dry, meaning it is not submerged in the liquid.

  • Ideal for Tanks and Closed Containers: Designed for applications where top access is not possible.
  • Stationary or Mobile Use: Can be mounted on a base plate for permanent installations or attached to a cart for portability.
  • Compatible with VISCOFLUX Mobile S: Optimized for drum unloading systems in industrial workflows.

Modular and Low-Maintenance Construction

This pump’s simplified design makes maintenance fast and efficient.

  • Comprehensive Modular System: Facilitates easy disassembly and servicing.
  • Minimal Components: Reduces maintenance time and ensures operational efficiency.
  • Electropolished Stainless Steel: Provides superior corrosion resistance and hygienic surfaces.

Safety and Compliance Features

The FLUX VISCOPOWER F580 TR is designed to meet stringent industrial safety requirements.

  • ATEX Certification Available: Suitable for use in hazardous environments where explosion-proof equipment is necessary.
  • High-Quality Materials: Built from stainless steel with durable stator materials (PTFE, NBR white, FKM).
  • Mechanical Seal Options: Available with open or closed SiC/SiC mechanical seals for enhanced safety.

Technical Specifications

  • Flow Rate: Up to 21.9 GPM (83 l/min)
  • Maximum Pressure: 217 PSIG (15 bar)
  • Viscosity Range: 1 - 100,000 cPs
  • Outer Tube Diameter: 53 mm
  • Standard Immersion Lengths: 16 in (400 mm)
  • Material: Stainless Steel
  • Stator Materials: PTFE, NBR white, FKM
  • Seal Type: Open or closed mechanical seal (SiC/SiC)
  • Operating Temperature: Up to 248°F (120°C)
  • Installation Method: Horizontal, not submerged in liquid
  • Compatible Containers: Ideal for tanks and containers that are not accessible from the top

Final Words

The FLUX VISCOPOWER F580 TR is a high-performance solution for industries requiring horizontal liquid transfer with minimal pulsation and high efficiency. Whether used in drum unloading systems or fixed industrial applications, this pump delivers reliable performance while ensuring easy maintenance. Its ability to handle extreme viscosities, combined with modular assembly and safety certifications, makes it a top choice for demanding industrial processes.
