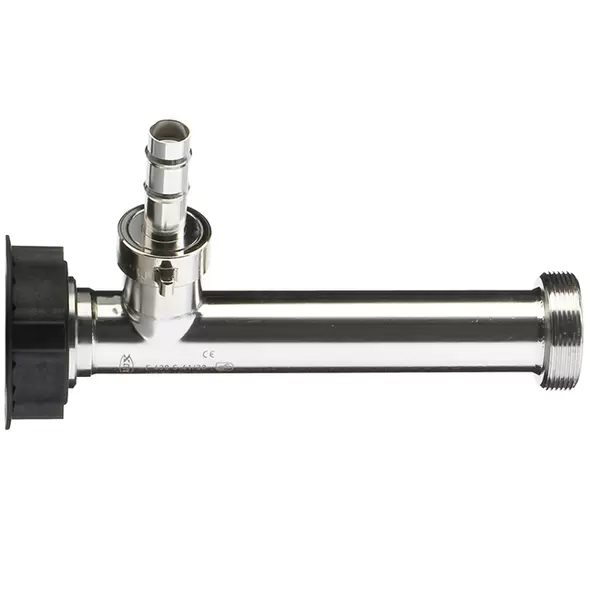

F430 Tote Pump

In stock
0.00
(0 reviews) Write a review
Brand: FLUX Pumps
Request Quote
Chat Now
  • Horizontal Design: Ideal for bottom outlet pumping from IBCs and tanks.
  • Compact Immersion: Minimal 8-inch immersion length fits tight spaces.
  • Reliable Seal: Mechanical seal prevents leakage for safe operation.
  • Flexible Materials: Offered in stainless steel and polypropylene for versatile use.
  • Fast Maintenance: Easily dismantles into two main components.
  • Motor Flexibility: Compatible with multiple motor types, including air motors.
  • Hazardous Area Use: Stainless steel version certified safe for hazardous environments.
  • Closed Valve Safe: Temporarily operates safely against closed discharge valves.
  • High Fluid Compatibility: Handles diverse fluids, including solvents, fuels, and acids.

Tell us what you need

+
F430 Tote Pump
In stock
0.00
(0 reviews) Write a review

Description

The F430 Tote Pump is expertly engineered to facilitate efficient horizontal fluid transfer directly from Intermediate Bulk Containers (IBCs), tanks, and other vessels equipped with low-level outlets. Specifically designed to address spatial constraints or situations where top-entry pumps cannot be used, the F430 Tote Pump provides reliable, flexible pumping capabilities for a wide range of media.

Its compact horizontal design allows seamless integration into restricted areas, enabling fluid transfer operations even in challenging or space-limited installations. Available in robust stainless steel or corrosion-resistant polypropylene, the F430 Tote Pump is suitable for diverse industrial environments and compatible with hazardous area applications when using the stainless steel version.

Innovative Features of the F430 Tote Pump

Horizontal Design for Low-Level Outlets

Unlike traditional vertical pumps, the F430 Tote Pump employs a horizontal configuration, specifically tailored for easy connection to bottom-outlet containers such as IBCs and tanks. This design ensures efficient fluid transfer even when container access from above is impractical or impossible.

Quick and Easy Disassembly

Designed for convenient cleaning and maintenance, the F430 Tote Pump easily disassembles into two main components. This practical feature significantly reduces downtime during routine cleaning or servicing operations, enhancing overall efficiency and operational hygiene.

Robust Mechanical Sealing

Featuring a robust mechanical seal, the F430 Tote Pump guarantees reliable and leak-free operation, even during temporary operation against closed valves (such as hand nozzles or ball valves). This advanced sealing technology ensures maximum protection against leakage and provides consistent operational reliability.

Versatile Material Options

The pump is offered in two highly durable construction materials: stainless steel, suitable for hazardous and corrosive environments, and polypropylene, ideal for aggressive chemical handling. Both materials ensure compatibility with a wide variety of industrial fluids, expanding operational flexibility across diverse sectors.

Flexible Motor Compatibility

The F430 Tote Pump seamlessly integrates with multiple motor types, including electric and compressed-air motors. This flexibility allows operators to select the optimal motor configuration according to specific operational or environmental needs, including compliance with hazardous area standards.

Compact Immersion Length

With an immersion length of just 8 inches (200 mm), the pump maintains a low-profile, compact design ideally suited for horizontal installations. This minimal size simplifies installation and enhances versatility in tight or confined operational spaces.

Safe Hazardous-Area Operation

The stainless steel variant of the F430 Tote Pump meets stringent safety requirements, ensuring safe, compliant fluid transfer within hazardous or explosive environments. This feature significantly expands the applicability of the pump across diverse industrial scenarios.

Key Benefits and Advantages

. Horizontal Pumping: Efficiently transfers fluid directly from container bottom outlets.
. Compact and Space-Saving: Ideal for limited space installations or low-level outlets.
. Rapid Maintenance: Quickly disassembles into two parts for fast cleaning.
. Mechanical Seal Reliability: Ensures leak-free and dependable fluid transfer.
. Material Versatility: Available in stainless steel and polypropylene.
. Motor Flexibility: Compatible with various motors including hazardous-area-rated motors.
. Operational Safety: Temporary operation against closed valves possible.
. Broad Fluid Compatibility: Handles acids, alkalis, petroleum, solvents, and flammables.
. Hazardous Area Certified: Stainless steel model approved for use in hazardous environments.

Technical Specifications

  • Maximum Flow Rate: 63 GPM
  • Maximum Delivery Head: 42 ft
  • Viscosity Range: <1 – 1200 cPs
  • Outer Tube Diameter: 41 mm
  • Standard Immersion Length: 8 inches (200 mm)
  • Materials of Construction: Polypropylene, Stainless Steel
  • Operating Temperature: Up to 212°F (100°C)
  • Seal Type: Mechanical seal
  • Motor Compatibility: Electric motors, compressed-air motors
  • Compatible Containers: IBCs, Totes, Tanks
  • Fluid Examples: Acids, Alkalis, Petroleum products, Flammables, Solvents, Fuels

Recommendations

The F430 Tote Pump offers an ideal horizontal pumping solution for applications requiring fluid transfer from IBCs, totes, and tanks with low-level outlets. Its robust mechanical sealing, flexible material options, compact design, and compatibility with hazardous-area environments make it exceptionally versatile for diverse industrial applications, including chemical handling, petrochemical transfers, and general industrial fluid management. Companies prioritizing efficient, reliable, and safe fluid transfer in restricted or challenging installations will find the F430 Tote Pump a valuable asset for enhancing operational efficiency and safety.
