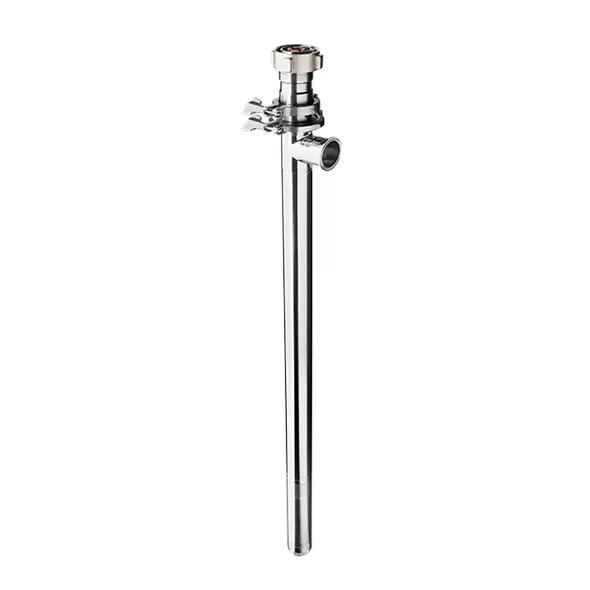

F570 For Hygienic Applications With Planetary Gearbox For Liquids Up To 80,000 Cps Max

In stock
0.00
(0 reviews) Write a review
Brand: FLUX Pumps
Request Quote
Chat Now

  • Hygienic Design: 3A Certified and FDA compliant for food, pharmaceutical, and cosmetic applications.
  • Smooth Pumping: Progressive cavity system ensures pulsation-free fluid transfer.
  • High Viscosity Handling: Pumps liquids up to 80,000 cPs efficiently.
  • Easy Maintenance: Modular system allows quick disassembly and cleaning.
  • Adjustable Performance: Available with two-stage (1:16) or single-stage (1:7) gear ratios.
  • Electropolished Stainless Steel: Ultra-smooth finish prevents contamination.
  • ATEX Certified: Available for use in hazardous environments.
  • Mobile or Fixed Installation: Suitable for portable and stationary applications.
  • Wide Temperature Range: Operates up to 248°F (120°C).

Tell us what you need

Description

The FLUX VISCOPOWER F570 hygienic progressive cavity pump is designed specifically for applications requiring the highest levels of cleanliness and safety, such as the food, cosmetic, and pharmaceutical industries. Equipped with a planetary gearbox, this positive displacement pump ensures smooth, pulsation-free fluid transfer at constant pressure, making it ideal for handling thin to highly viscous liquids up to 80,000 cPs. Built to meet FDA and 3A sanitary standards, this pump is easy to dismantle, clean, and maintain, ensuring compliance with strict hygiene regulations. It is suitable for both mobile and fixed installations, offering flexibility and efficiency in diverse industrial settings.

Key Features and Benefits

Optimized for Hygienic Applications

The FLUX VISCOPOWER F570 is specifically engineered for industries that require exceptional cleanliness and sanitary processing.

  • FDA-Compliant and 3A Certified: Meets stringent hygiene requirements for food, pharmaceutical, and cosmetic applications.
  • Electropolished Finish: FDA models feature a 1.0 μm Ra finish, while 3A models have a superior 0.8 μm Ra finish for ultra-smooth surfaces that resist contamination.
  • Closed Mechanical Seal: Designed for easy cleanability, preventing product buildup and bacterial growth.

Advanced Pumping Performance

This pump’s progressive cavity design ensures smooth, efficient liquid transfer while minimizing turbulence and shear forces.

  • Pulsation-Free Flow: Provides gentle transfer of sensitive fluids without damaging product integrity.
  • High Viscosity Handling: Capable of pumping liquids up to 80,000 cPs efficiently.
  • Consistent Flow Rate: Maintains a steady transfer rate under constant pressure.
  • Gear Ratio Options: Available with two-stage (1:16) or single-stage (1:7) gear ratios for customized performance.

Modular and Easy-to-Maintain Design

With a comprehensive modular system, the FLUX VISCOPOWER F570 ensures quick assembly and disassembly, reducing downtime and simplifying maintenance.

  • Few Components Required: Allows for easy cleaning and servicing.
  • Tool-Free Disassembly: Enables quick breakdown for thorough sanitation.
  • High-Quality Stainless Steel Construction: Provides superior durability and corrosion resistance.

Versatile Application Possibilities

This pump is designed for flexible use across a wide range of industries and operational setups.

  • Mobile or Fixed Installations: Can be used as a portable pump or integrated into a permanent system.
  • Horizontal Mounting Capability: Suitable for various process layouts.
  • ATEX Certification Available: Safe for use in hazardous or explosion-prone environments.

Technical Specifications

  • Flow Rate: Up to 21.9 GPM (83 l/min)
  • Maximum Pressure: 217 PSIG (15 bar)
  • Viscosity Range: 1 - 80,000 cPs
  • Outer Tube Diameter: 53 mm
  • Standard Immersion Lengths: 27, 39, 47, 60 in (700, 1000, 1200, 1500 mm)
  • Material: Stainless Steel
  • Electropolished Finish: FDA models (1.0 μm Ra), 3A models (0.8 μm Ra)
  • Stator Materials: PTFE, NBR white
  • Seal Type: SiC/SiC closed mechanical seal
  • Operating Temperature: Up to 248°F (120°C)
  • Compatible Containers: 55-gallon drums, totes, and IBCs

Final Words

The FLUX VISCOPOWER F570 is the perfect solution for industries requiring precision, efficiency, and high hygiene standards. Its FDA-compliant and 3A-certified design ensures safe handling of sensitive liquids, while its modular construction provides easy maintenance. Whether used in food processing, cosmetics manufacturing, or pharmaceutical production, this pump guarantees reliable performance with minimal downtime. Its ability to handle a broad range of viscosities and its compatibility with both mobile and fixed installations make it an essential tool for hygienic industrial applications.
