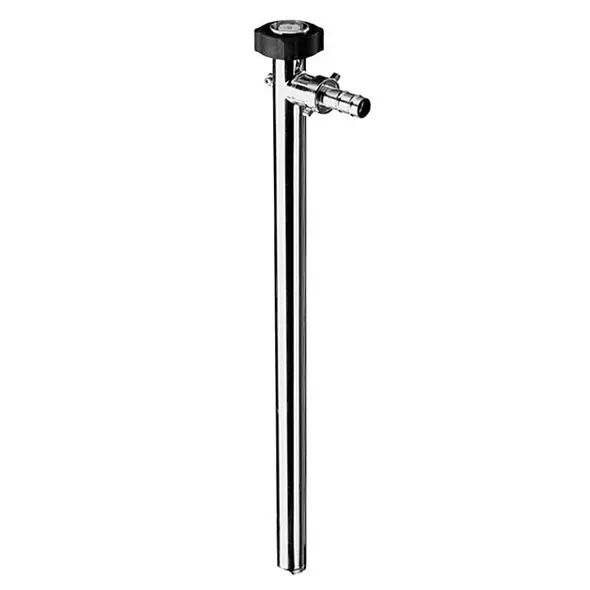

F430 Sealed Pump

The F430 Sealed Pump offers unmatched flexibility and reliability in transferring a broad range of media from drums, totes, intermediate bulk containers (IBCs), and tanks. Designed for universal compatibility with various fluids—including aggressive chemicals, petroleum products, acids, alkalis, flammables, solvents, fuels, and aqueous salt solutions—this pump excels across multiple industry sectors such as chemical, pharmaceutical, food, beverage, and petrochemical.

Uniquely constructed with advanced materials and reinforced inner tube technology, the F430 Sealed Pump ensures consistent mechanical seal functionality, preventing leakage, reducing wear, and maximizing operational efficiency across the entire temperature range. Available in multiple material configurations—polypropylene (PP), polyvinylidene fluoride (PVDF), stainless steel, and Hastelloy C—the pump meets stringent industrial standards, including hazardous area compliance and FOOD-grade certifications.

Outstanding Features of the F430 Sealed Pump

Universal Compatibility and Robust Construction

The versatile design of the F430 Sealed Pump accommodates diverse applications, supporting viscosities ranging from less than 1 up to 1200 cPs. Its high-quality construction materials ensure safe handling of challenging fluids, making it the ideal choice for chemical, petrochemical, food processing, and industrial fluid transfer applications.

Innovative Mechanical Seal with Reinforced Inner Tube

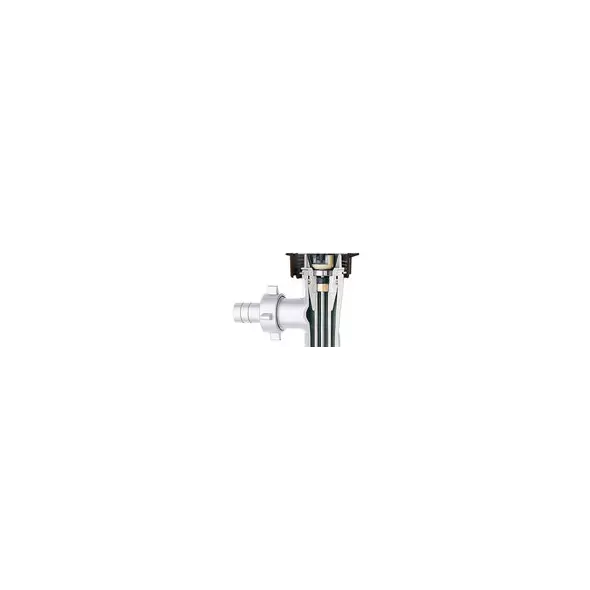

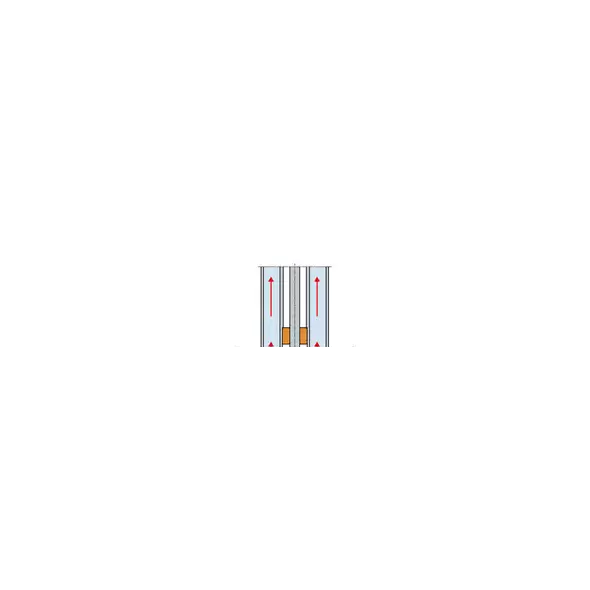

A distinctive feature of the F430 is its mechanically sealed design coupled with an innovative steel-reinforced inner tube (in PP and PVDF models). This unique combination maintains full mechanical seal integrity throughout the complete operating temperature range, effectively preventing leaks and reducing unnecessary wear—significantly enhancing pump lifespan, reliability, and performance.

Easy Disassembly for Rapid Maintenance

The F430 Sealed Pump is engineered for quick and straightforward dismantling, enabling easy separation into two main parts for rapid cleaning, maintenance, or repairs. This efficient design reduces downtime, enhances productivity, and maintains operational consistency across demanding industrial environments.

Exceptional Stability and Extended Immersion Length

Thanks to its steel-reinforced construction, the F430 Sealed Pump achieves unmatched structural stability, enabling extended immersion lengths of up to 118 inches (3000 mm). This makes it particularly beneficial for deep containers and complex operational setups, ensuring safe and efficient fluid transfer in challenging applications.

Certified for Hazardous Areas and FOOD Applications

The pump is available in stainless steel and Hastelloy C variants certified safe for use in hazardous areas, ensuring secure handling of flammable and volatile media. Additionally, a FOOD-grade certified version meets strict hygienic and safety requirements for food, pharmaceutical, and cosmetic industries, ensuring compliance with international safety standards.

Flexible Motor Integration

Easily adaptable to various motors (electric or compressed-air), the F430 Sealed Pump delivers operational flexibility suitable for different power sources and operational environments, including those requiring explosion-proof motors.

Key Benefits and Advantages

. Mechanical Seal Reliability: Ensures leak-free, reliable fluid transfer.
. Steel-Reinforced Inner Tube: Provides structural stability and optimal mechanical sealing.
. Universal Fluid Handling: Compatible with acids, alkalis, solvents, fuels, and aggressive chemicals.
. Rapid Maintenance: Easy, quick disassembly into two main components reduces downtime.
. Certified Safety: Suitable for hazardous areas and available in FOOD-grade models.
. Versatile Viscosity Range: Efficiently handles liquids from <1 to 1200 cPs.
. Multiple Material Options: Available in PP, PVDF, Stainless Steel, Aluminum, and Hastelloy C.
. Extended Immersion Length: Up to 118 inches available for deep container applications.
. Compact and Efficient: Ideal for small containers, drums, totes, and IBCs.

Technical Specifications

• Maximum Flow Rate: 63 GPM
• Maximum Delivery Head: 98 ft
• Viscosity Range: <1 – 1200 cPs
• Outer Tube Diameter: 40 mm - 50 mm
• Immersion Lengths: 27, 39, 47, 60 inches standard (up to 118 inches optional)
• Materials of Construction: Polypropylene, PVDF, Stainless Steel, Aluminum, Hastelloy C
• Maximum Temperature: Up to 248°F (120°C)
• Seal Type: Mechanical Seal
• Container Compatibility: Small containers, Hobbocks, 55-gallon Drums, Totes, IBCs
• Fluid Compatibility: Acids, Alkalis, Petroleum products, Flammables, Solvents, Fuels, Aggressive chemicals, Aqueous solutions
• Hazardous Area Use: Stainless Steel and Hastelloy versions approved for hazardous environments

Recommendations

The F430 Sealed Pump is highly recommended for industries seeking a reliable, versatile, and robust pumping solution capable of handling diverse fluids efficiently and safely. Its distinctive mechanically sealed design, reinforced inner tube technology, and versatile material compatibility make it an ideal choice for chemical handling, food processing, petrochemical transfer, and hazardous area applications. Companies prioritizing durability, operational safety, and ease of maintenance will find the F430 Sealed Pump an exceptional investment to enhance overall productivity and reliability.
