Description

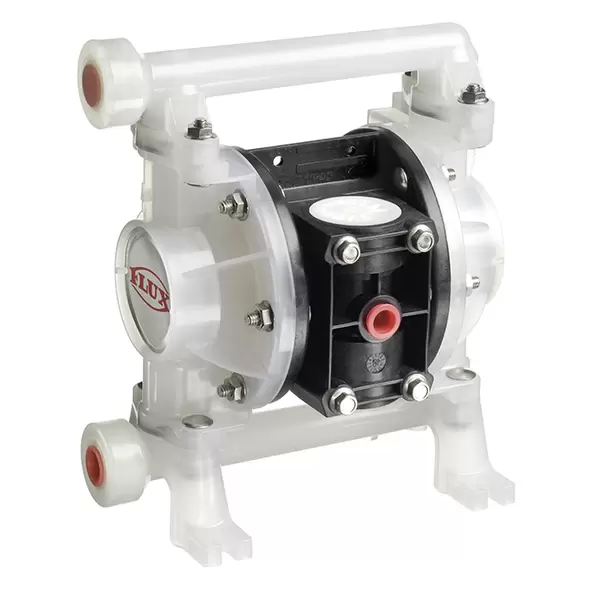

The FLUX FDM 10 Air-Operated Diaphragm Pump is a self-priming, dry-run protected, and fully submersible pump designed for low to high-viscosity media, including solid-laden, abrasive, flammable, and aggressive liquids. Its injection-molded construction, oil-free operation, and unbalanced air valve design ensure efficient, blockage-free performance in industrial applications. With adjustable flow rates, long service life, and versions available for hazardous areas, the FDM 10 is an ideal solution for demanding fluid transfer needs.
Key Features and Benefits
Injection-Molded, Durable Construction
Designed for long-term performance, the FDM 10 is built using polypropylene, polyvinylidene fluoride (PVDF), and conductive acetal, offering excellent chemical resistance and wear-free operation.
Self-Priming with Dry-Run Protection
The FDM 10 is fully self-priming, allowing for efficient startup even from a dry state. It also features dry-run protection, preventing pump damage when operating without fluid.
Adjustable Flow Rate Without Bypass Control
The variable delivery rate can be adjusted by modifying the air pressure, ensuring precise control over flow performance without requiring an additional bypass control system.
Fully Submersible for Versatile Use
The FDM 10 can be fully submerged for flexible installation, making it ideal for applications where immersion in fluid is necessary.
Unbalanced Air Valve Design for Stalling Prevention
The unbalanced air valve eliminates the risk of pump stalling, ensuring continuous and smooth operation.
Oil-Free Operation for Maintenance-Free Performance
With an oil-free design, the FDM 10 eliminates contamination risks, making it environmentally friendly and maintenance-efficient.
Resistant to Foreign Particles and Abrasive Media
The regulating valve is insensitive to foreign particles in the air, ensuring consistent performance even in challenging industrial environments.
ATEX-Certified Versions for Hazardous Areas
For operations in explosion-prone environments, ATEX-certified versions are available, ensuring compliance with safety regulations.
Technical Specifications
- Flow Rate: Max. 10 GPM (40 L/min)
- Discharge Pressure: Max. 101 psi
- Suction Lift (Dry): 13 ft (4 m)
- Suction Lift (Wet): 24 ft (7.6 m)
- Maximum Solids Handling: 1.6 mm
- Housing Materials: Polypropylene, PVDF, Conductive Acetal
- Compatible Fluids: Flammable media, abrasive and viscous media, aggressive fluids
Final Words
The FLUX FDM 10 Air-Operated Diaphragm Pump is a high-performance, maintenance-friendly, and versatile solution for fluid transfer in industrial, chemical, and hazardous environments. With its self-priming ability, dry-run protection, oil-free operation, and adjustable flow rates, this pump ensures efficiency, reliability, and long-lasting performance. Whether used for flammable liquids, abrasive chemicals, or aggressive media, the FDM 10 is an excellent choice for safe and smooth fluid handling.
