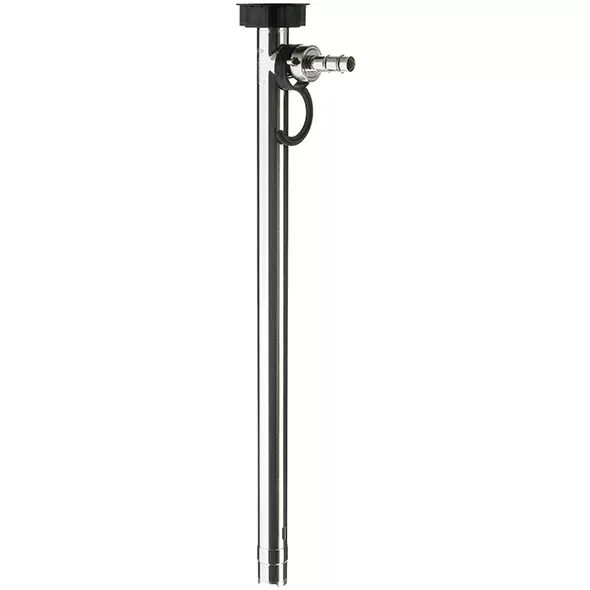

F427 Sanitary Pump

The F427 Sanitary Pump is expertly designed for hygienic fluid handling, providing efficient transfer from drums, totes, Intermediate Bulk Containers (IBCs), and other standard containers. Engineered specifically for industries with stringent cleanliness standards, such as food processing, beverage production, cosmetics manufacturing, and pharmaceutical sectors, this pump excels in transferring sensitive and sanitary products without contamination or product degradation.

With its completely sealless design in the fluid contact area, the F427 Sanitary Pump eliminates potential contamination risks, making it ideal for hygienic applications. Constructed from high-grade stainless steel (316 Ti / 1.4581), the pump meets international safety standards, including FOOD/FDA and 3A certifications, ensuring compliance with the highest sanitary and hygiene requirements.

Advanced Features of the F427 Sanitary Pump

Hygienic and Sealless Design

The unique sealless design of the F427 Sanitary Pump ensures zero contamination of liquids during pumping operations. By eliminating seals in the liquid-contact area, the pump significantly reduces potential contamination points, delivering superior product purity essential in food, beverage, cosmetic, and pharmaceutical applications.

Quick and Easy Disassembly

Designed with minimal complexity, the F427 can be rapidly and effortlessly dismantled for thorough cleaning, sterilization, or maintenance. Its modular construction allows full disassembly down to individual components with minimal tools required, simplifying cleaning protocols and significantly reducing downtime between batches.

Minimal Dead Spots

The pump’s design incorporates minimal dead spots, preventing product buildup and bacterial growth. This ensures that fluids remain uncontaminated and product quality remains consistently high, essential in hygienic manufacturing environments.

Robust Stainless Steel Construction

Crafted entirely from robust, corrosion-resistant stainless steel (316 Ti / 1.4581), the F427 Sanitary Pump delivers exceptional durability and compatibility with a wide range of fluids, including beverages, food ingredients, edible oils, juices (including pulp), flavors, fragrances, cosmetic products, and pharmaceutical solutions.

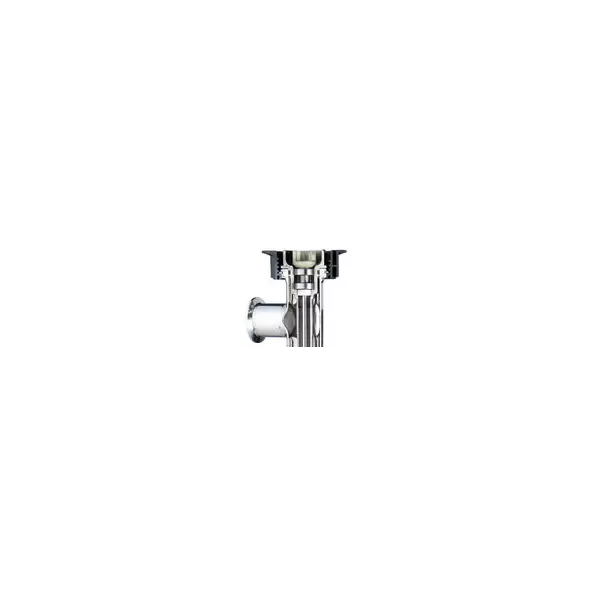

Closed Bearing System

Featuring an advanced closed bearing system, the pump simultaneously supports both the shaft and the inner tube. This construction not only increases operational reliability but also prevents vapor or liquid infiltration into the coupling area, enhancing overall pump longevity and reducing maintenance needs.

Flexible Motor Compatibility

The F427 Sanitary Pump can be effortlessly combined with a variety of motors according to specific operational requirements, offering flexibility in installation and operation. This feature ensures adaptability across diverse production scenarios and simplifies integration into existing equipment setups.

Key Benefits of Using the F427 Sanitary Pump

. Superior Hygiene: Sealless design and minimal dead spots ensure optimal sanitary conditions.
. Rapid Maintenance: Easy disassembly enables quick and thorough cleaning processes.
. Reduced Contamination Risk: Closed bearing system prevents fluid or vapor intrusion into coupling areas.
. Robust and Durable: High-quality stainless steel construction provides corrosion resistance and longevity.
. Operational Flexibility: Compatibility with various motors facilitates flexible operational setups.
. Certified Compliance: Meets stringent FOOD/FDA and 3A hygienic standards.
. Wide Fluid Compatibility: Suitable for fluids with viscosities ranging from <1 to 1000 cPs.
. Compact and Efficient: Compact outer tube design allows for use in various container sizes and applications.
. Internationally Approved: Complies with global safety and hygiene regulations.

Technical Specifications

• Maximum Flow Rate: 63 GPM
• Maximum Delivery Head: 42 ft
• Viscosity Range: <1 – 1000 cPs
• Material of Construction: Stainless Steel (316 Ti / 1.4581)
• Outer Tube Diameter: 43 mm
• Standard Immersion Lengths: 27, 39, 47 in (700, 1000, 1200 mm)
• Maximum Operating Temperature: 212°F (100°C)
• Certification: FOOD/FDA compliant, 3A certified
• Containers Supported: 55 Gallon Drums, Totes, IBCs
• Seal Type: Sealless design

Final Words

The F427 Sanitary Pump is a leading choice for industries that require reliable, hygienic, and efficient fluid handling solutions. Its innovative, sanitary design coupled with easy maintenance and exceptional flexibility makes it the ideal pumping solution for sensitive or regulated applications. For businesses prioritizing cleanliness, product purity, and regulatory compliance, the F427 Sanitary Pump delivers consistently reliable performance and represents an indispensable investment in quality, efficiency, and hygiene.
