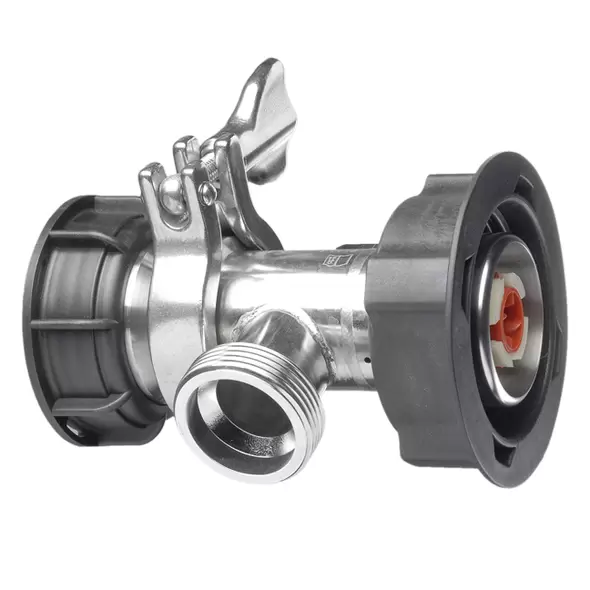

F430 Miniflux

The F430 MINIFLUX compact container pump is specifically engineered to efficiently empty fluids from Intermediate Bulk Containers (IBCs) and totes directly via the bottom outlet connection. Ideal as an alternative to traditional vertical pumps, this horizontal pump provides a highly practical solution, especially in situations where container accessibility from the top is restricted or impossible.

Designed for operational flexibility, the F430 MINIFLUX is particularly suitable when gravity draining through standard outlet taps is inadequate, such as when higher flow rates or elevated discharge pressures are required. Whether transferring fluids to higher positioned containers or overcoming gravity limitations, the F430 MINIFLUX meets demanding industrial fluid transfer requirements with ease, safety, and precision.

Outstanding Features of F430 MINIFLUX

Direct Bottom-Connection Pumping

Specifically created to pump fluids directly from the outlet of totes and IBCs, the F430 MINIFLUX eliminates the need for top-opening access. Its easy-to-use union nut ensures secure, leak-proof attachment to container outlets, facilitating rapid installation and efficient fluid transfer operations.

Compact and Lightweight Design

With its exceptionally compact size and low overall weight of only 2.5 lbs, the F430 MINIFLUX simplifies handling and installation even in limited-space environments. This portability significantly reduces setup time and ensures effortless mobility, enhancing operational efficiency.

Flexible Power Options

The pump can be conveniently powered either by an electric commutator motor or a compressed-air motor, offering operators flexibility in selecting the most suitable power source based on operational or environmental considerations, including hazardous-area compatibility.

Robust Stainless Steel Construction

Constructed entirely from high-grade stainless steel, the F430 MINIFLUX provides superior resistance to corrosion and chemical attack, ensuring long-lasting durability. This material choice makes it highly compatible with low concentrations of acids, alkalis, solvents, water-based solutions, and even flammable fluids, broadening its applicability in various industrial sectors.

Superior Flow and Pressure

Compared to conventional gravity draining, the F430 MINIFLUX achieves substantially higher flow rates (up to 63 GPM) and delivery pressures (up to 42 ft), enabling more efficient and reliable fluid transfer. This capability proves particularly valuable when transferring fluids upwards or across longer distances within a processing facility.

Safe Operation Against Closed Valves

The pump safely operates temporarily against closed discharge valves, such as hand nozzles, flap valves, or ball valves, enhancing safety and operational control during fluid handling processes.

Mechanically Sealed Reliability

Featuring a dependable mechanical seal, the F430 MINIFLUX guarantees leak-free fluid transfer, minimizing maintenance requirements, and enhancing operational safety and reliability.

Suitable for Hazardous Areas

The stainless steel version of the F430 MINIFLUX meets stringent safety standards, making it suitable for safe operation in hazardous areas involving flammable or volatile media, thus ensuring compliance with industry safety regulations.

Core Benefits and Advantages

. Bottom Outlet Compatible: Quickly connects directly to IBC and tote bottom outlets.
. Compact and Lightweight: Easily handled at only 2.5 lbs; perfect for tight spaces.
. High Flow & Pressure: Delivers significantly greater flow and pressure than gravity draining.
. Multiple Power Sources: Compatible with electric or compressed-air motors for maximum flexibility.
. Robust Construction: Stainless steel design provides excellent chemical resistance and durability.
. Mechanical Seal Protection: Secure sealing ensures leak-free operation and reduced downtime.
. Easy Maintenance: Quickly dismantles into two parts for straightforward cleaning.
. Hazardous Area Safe: Certified safe for use in explosive or hazardous environments.
. Closed-Valve Operation: Safe for temporary operation against closed discharge valves.

Technical Specifications

• Maximum Flow Rate: 63 GPM
• Maximum Delivery Head: 42 ft
• Viscosity Range: <1 – 1000 cPs
• Outer Tube Diameter: 41 mm
• Materials of Construction: Stainless Steel
• Maximum Operating Temperature: 212°F (100°C)
• Seal Type: Mechanical seal for reliable operation
• Power Options: Electric commutator motor or compressed-air motor
• Compatible Containers: IBCs, Totes
• Fluid Compatibility: Low concentrations of acids and alkalis, solvents, water-based solutions, flammable fluids

Recommendations

The F430 MINIFLUX compact container pump is highly recommended for operations involving the direct pumping of fluids from horizontally-oriented IBCs or totes. Particularly beneficial when access from above is limited or impossible, its compact size, lightweight portability, and superior performance ensure efficient and safe fluid transfer. Industries including chemical processing, water treatment, manufacturing, pharmaceuticals, and petrochemical sectors will significantly benefit from the exceptional versatility, reliability, and safety provided by the F430 MINIFLUX.
