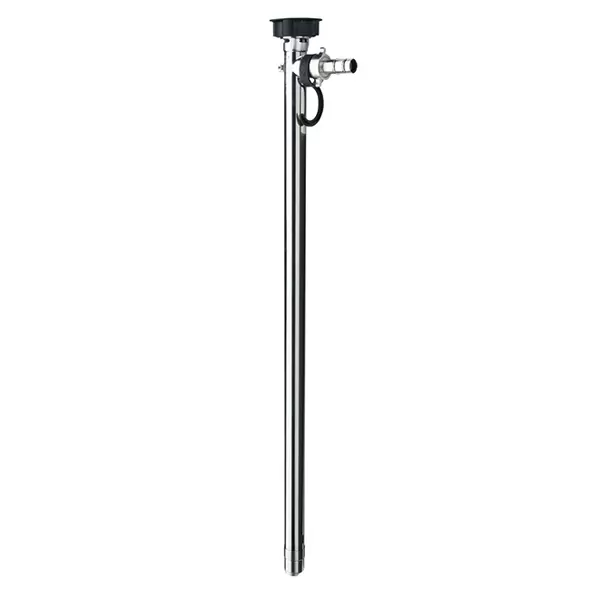

F424 Sealless Pump

The F424 Sealless Pump is a high-performance, industrial-grade transfer pump, designed for handling various low-viscosity and aggressive fluids with precision and efficiency. Its sealless design eliminates seal wear, significantly extending the service life and reliability of the pump.

Engineered for drums, totes, intermediate bulk containers (IBCs), and small containers, the F/FP 424 model offers exceptional flow rates, compatibility with multiple materials, and adaptability for hazardous environments. Whether handling acids, alkalis, petroleum products, flammables, or solvents, the F424 Sealless Pump ensures safe, efficient, and contamination-free fluid transfer.

Sealless Design for Maximum Durability and Low Maintenance

One of the standout features of the F424 Sealless Pump is its innovative design, which removes traditional seals, reducing wear and tear while enhancing operational longevity.

Key Benefits of the Sealless Construction:

• No seal wear, eliminating the need for frequent replacements.
• Extended pump life, reducing maintenance costs and downtime.
• No risk of leaks, ensuring contamination-free fluid transfer.
• Reduced vapor emissions, making it safer for handling hazardous chemicals.

By eliminating the mechanical seal, the F424 reduces long-term wear and maintenance, making it an ideal choice for continuous industrial use.

Advanced Bearing System for Superior Performance

The F424 Sealless Pump is equipped with a long spiral-shaped guide bearing and a steel-cored inner tube, which work together to:

• Prevent media buildup, reducing the risk of clogs and wear.
• Enhance operational stability, ensuring smooth and consistent fluid transfer.
• Increase service life, minimizing the need for frequent maintenance.

Additionally, radial shaft seals prevent corrosive vapors and liquids from entering the coupling area, further enhancing pump longevity and efficiency.

Versatile Material Options for Chemical Compatibility

To accommodate a wide range of industrial applications, the F424 Sealless Pump is available in multiple high-quality material options:

• Polypropylene (PP) – Ideal for mild chemicals and aqueous solutions.
• Polyvinylidene Fluoride (PVDF) – Provides excellent resistance to aggressive chemicals and high temperatures.
• Stainless Steel (SS) – Highly durable and suitable for flammable liquids, solvents, and hazardous environments.

The stainless steel version of the F424 is ATEX-certified, making it suitable for explosion-proof applications in hazardous environments.

Optimized for Industrial Fluid Transfer Applications

The F424 Sealless Pump is designed for use in a variety of containers, including:

• 55-gallon drums
• Intermediate bulk containers (IBCs)
• Small containers and totes
• Specialized chemical storage tanks

Its flexible compatibility allows it to be used in numerous industries, including chemical processing, fuel transfer, wastewater treatment, and hazardous material handling.

High-Capacity Performance for Maximum Efficiency

With an impressive flow rate of up to 63 GPM and a delivery head of up to 98 feet, the F424 is designed for high-volume fluid transfer.

Technical Specifications:

• Flow Rate: Up to 63 GPM
• Delivery Head: Up to 98 ft
• Viscosity Range: 1 - 1200 cPs
• Outer Tube Diameter: 40 mm - 50 mm
• Standard Immersion Lengths: 27, 39, 47, 60 inches (700, 1000, 1200, 1500 mm)
• Material Options: Polypropylene, PVDF, Stainless Steel
• Temperature Limit: Up to 212°F (100°C)
• Compatible Fluids: Acids, Alkalis, Petroleum Products, Flammables, Solvents, Fuels, Aqueous Salt Solutions, Aggressive Chemicals

These specifications make the F424 ideal for handling a broad range of industrial fluids, ensuring safe and efficient transfer in high-demand applications.

Explosion-Proof Design for Hazardous Areas

For industries handling flammable liquids and hazardous chemicals, the stainless steel F/FP 424 version is ATEX-certified, ensuring compliance with strict explosion-proof regulations.

Key Safety Features:

• ATEX-rated construction for hazardous areas.
• Designed for explosion-proof environments.
• Minimizes vapor emissions and chemical exposure risks.

With specialized safety features, the F424 is one of the safest pumps available for hazardous fluid handling.

Adaptable for Various Power Configurations

The F424 Sealless Pump is designed to be paired with all 4-Series FLUX motors, offering flexibility in power configurations and operational control.

Additionally, it can be temporarily operated against a closed valve or hand nozzle, making it adaptable to various industrial workflows.

Final Words

The F424 Sealless Pump is a high-performance, maintenance-free solution for industrial fluid transfer applications, offering durability, efficiency, and safety.With its sealless construction, extended bearing life, high-capacity performance, and explosion-proof options, the F424 is an ideal choice for industries requiring reliable, contamination-free fluid handling.

Designed for high-speed, low-maintenance operation, this pump is built to exceed industry standards while ensuring seamless compatibility with multiple applications and power configurations.Whether transferring corrosive chemicals, petroleum products, or flammable solvents, the F424 Sealless Pump delivers unmatched efficiency and durability.
