RFM-RFML 10

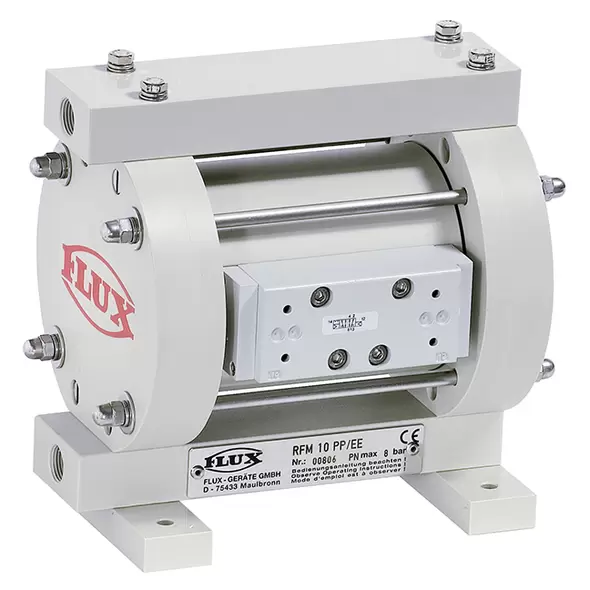

The FLUX RFM/RFML 10 Air-Operated Diaphragm Pump is a self-priming, dry-run protected solution designed for versatile fluid transfer applications. This robust pump efficiently handles low to high-viscosity media, including solids-laden, abrasive, and highly flammable substances. With an enduring composite diaphragm, thick-surfaced structure, and high chemical resistance, the RFM/RFML 10 ensures exceptional durability, even under extreme conditions.

Key Features and Benefits

Rugged and Durable Construction

The massive pump body provides outstanding mechanical strength, making it highly resistant to diffusion and wear. The thick-surface structure minimizes permeability, ensuring enhanced chemical resistance and prolonged service life, even at high pressures.

Reliable Performance with Self-Priming and Dry-Run Protection

This air-operated diaphragm pump is self-priming, allowing seamless fluid intake even from dry conditions. Its dry-run protection ensures operational safety and prevents damage when the fluid supply is interrupted.

Exceptional Versatility for Diverse Fluids

Designed to handle a broad spectrum of substances, the RFM/RFML 10 is suitable for:

• Highly flammable liquids
• Abrasive media
• Viscous substances
• Liquids containing solid particles
• Media with high gas content

Extended Diaphragm Life for Cost-Effective Operations

The composite enduring diaphragm features an integrated metallic core, ensuring long-lasting performance and superior resistance to wear, even when handling abrasive materials. Its short stroke lift mechanism further enhances longevity, reducing maintenance costs and downtime.

Quiet and Energy-Efficient Operation

Unlike many conventional pumps, the RFM/RFML 10 operates with minimal noise levels, creating a more comfortable and safer work environment. Additionally, variable delivery rates allow operators to fine-tune flow performance simply by adjusting the air pressure, leading to optimized energy usage.

Superior Chemical Resistance for Harsh Environments

Constructed from polypropylene, PTFE, conductive polypropylene, and conductive PTFE, this pump exhibits excellent chemical resistance, ensuring compatibility with a wide range of aggressive and corrosive fluids.

Adaptable for Hazardous and FDA-Regulated Applications

For industries requiring strict safety compliance, special versions of the RFM/RFML 10 are available:

• ATEX-certified versions for hazardous and explosion-prone areas
• FDA-certified models for food, pharmaceutical, and sanitary applications

Technical Specifications

• Flow Rate: Max. 7.9 GPM (30 L/min)
• Discharge Pressure: Max. 101 psi
• Suction Lift (Dry): 9 ft
• Suction Lift (Wet): Max. 26 ft
• Maximum Solids Handling: 2 mm
• Housing Materials: Polypropylene, PTFE, Conductive Polypropylene, Conductive PTFE
• Compatible Fluids: Flammable liquids, viscous and abrasive media, solids-laden fluids, high-gas-content media

Final Words

The FLUX RFM/RFML 10 Air-Operated Diaphragm Pump is a powerful, adaptable, and highly durable solution for fluid transfer in industrial, chemical, and hazardous environments. With its self-priming ability, dry-run protection, and long-lasting diaphragm, this pump is a cost-effective choice for demanding applications. Whether handling corrosive chemicals, viscous fluids, or abrasive substances, the RFM/RFML 10 delivers unmatched performance and reliability in every operation.
