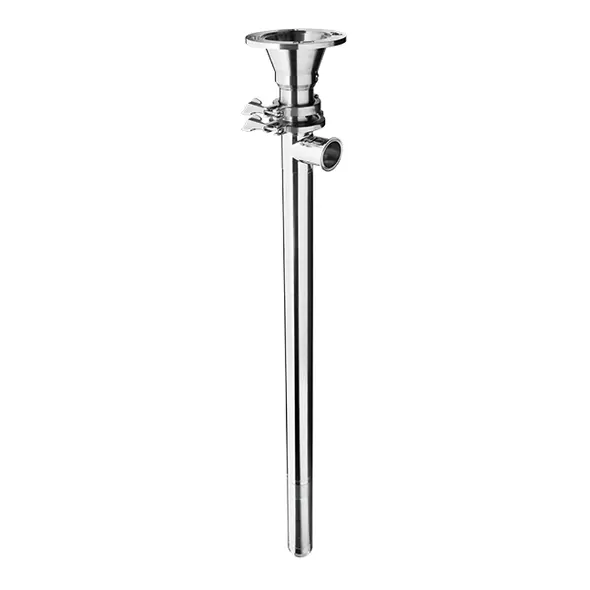

F580 For Industrial Applications With Bearing Flange For Liquids Up To 100,000 Cps Max

In stock
0.00
(0 reviews) Write a review
Brand: FLUX Pumps
Request Quote
Chat Now
  • Smooth Operation: Progressive cavity design ensures gentle, pulsation-free pumping.
  • High Viscosity Handling: Pumps fluids up to 100,000 cPs efficiently.
  • Easy Maintenance: Modular system enables quick disassembly and cleaning.
  • Adjustable Flow Rate: Compatible with frequency-controlled motors for precise flow control.
  • Robust Construction: Made from stainless steel with an electropolished finish.
  • ATEX Certified: Available for use in hazardous areas.
  • Versatile Installation: Suitable for mobile and fixed setups.
  • Broad Application Range: Works with 55-gallon drums, totes, and IBCs.
  • Temperature Resistant: Operates up to 248°F (120°C)

Tell us what you need

Description

The FLUX VISCOPOWER F580 industrial progressive cavity pump is an advanced solution designed for transferring thin to highly viscous liquids, with a capability of handling viscosities up to 100,000 cPs. Featuring a bearing flange for stable and efficient operation, this pump ensures smooth, pulsation-free fluid transfer. Its positive displacement mechanism allows for consistent pressure delivery, making it ideal for industrial applications requiring precision and reliability. With a modular design, the pump is easy to dismantle, clean, and maintain, making it a practical choice for both mobile and fixed installations.

Key Features and Benefits

Advanced Pumping Performance

The FLUX VISCOPOWER F580 operates as a progressive cavity pump, delivering a steady and controlled flow while minimizing shear forces on sensitive fluids.

  • Pulsation-Free Transfer: Ensures smooth, consistent liquid flow without turbulence.
  • Low Shear Handling: Ideal for delicate, shear-sensitive substances.
  • Adjustable Flow Rate: When used with a frequency-controlled three-phase motor, the flow rate can be precisely controlled.
  • High Efficiency: Optimized design minimizes energy consumption while maintaining top performance.

Modular and Easy-to-Maintain Design

With a simple assembly, the FLUX VISCOPOWER F580 is designed for hassle-free maintenance and service.

  • Comprehensive Modular System: Allows quick disassembly for easy cleaning and servicing.
  • Few Components Required: Reduces complexity and maintenance time.
  • Durable and Reliable: Stainless steel construction ensures longevity.

Versatile Application Potential

The FLUX VISCOPOWER F580 can handle a broad range of liquids, making it suitable for various industrial environments.

  • Wide Viscosity Range: Handles fluids from 1 to 100,000 cPs.
  • Mobile and Fixed Installations: Can be used as a portable pump or integrated into a stationary system.
  • Horizontal Application Compatibility: Designed for diverse operational setups.

Enhanced Safety and Durability

Built with high-quality materials, the FLUX VISCOPOWER F580 meets the highest industrial standards.

  • Stainless Steel Construction: Provides excellent resistance to corrosion and wear.
  • ATEX Certification Available: Suitable for hazardous environments where explosion-proof equipment is required.
  • Electropolished Surface: 1.0 μm Ra finish for superior hygiene and ease of cleaning.

Technical Specifications

  • Flow Rate: Up to 21.9 GPM (83 l/min)
  • Maximum Pressure: 217 PSIG (15 bar)
  • Viscosity Range: 1 - 100,000 cPs
  • Outer Tube Diameter: 53 mm
  • Standard Immersion Lengths: 27, 39, 47, 60 in (700, 1000, 1200, 1500 mm)
  • Material: Stainless Steel
  • Stator Materials: PTFE, NBR white
  • Seal Type: Closed mechanical seal (SiC/SiC)
  • Operating Temperature: Up to 248°F (120°C)
  • Compatible Containers: 55-gallon drums, totes, and IBCs

Final Words

The FLUX VISCOPOWER F580 is a highly efficient and reliable choice for industries that require precise liquid transfer across a broad viscosity range. Its modular design, pulsation-free operation, and high durability make it a preferred solution for both stationary and mobile industrial applications. Whether used in standard or hazardous environments, this pump ensures long-lasting performance with minimal maintenance requirements.
