FDM 07

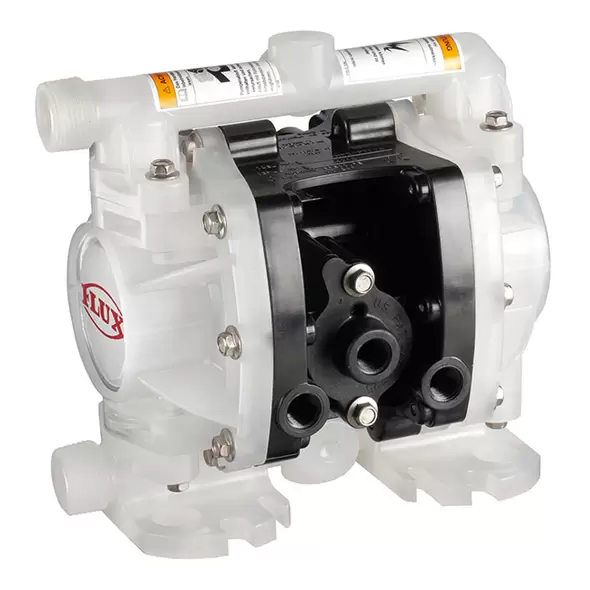

The FLUX FDM 07 Air-Operated Diaphragm Pump is a self-priming, dry-run protected pump designed for low to high-viscosity media, including solids-laden, abrasive, and highly flammable fluids. Its injection-molded construction, energy-efficient air consumption, and non-stall air valve technology make it an excellent choice for compact fluid transfer applications. With oil-free operation, alternative connection positions, and versions for hazardous areas, the FDM 07 is a reliable and flexible pumping solution for various industries.

Key Features and Benefits

Compact, Durable, and Energy-Efficient Design

The injection-molded construction of the FDM 07 ensures high durability while maintaining a lightweight and compact design. It operates efficiently with low air consumption, reducing energy costs while maintaining optimal performance.

Self-Priming with Dry-Run Protection

This pump is fully self-priming, eliminating the need for manual priming. It also features dry-run protection, preventing damage and ensuring reliable operation even when fluid supply is interrupted.

Handles a Wide Range of Fluids

The FDM 07 is designed to pump various liquid types, including:

• Highly flammable liquids
• Abrasive and corrosive media
• Viscous fluids
• Fluids with solid particles (up to 1.6mm in size)

Non-Stall Air Valve Technology for Smooth Performance

The integrated non-stall air valve ensures continuous operation without interruptions, eliminating performance fluctuations and maximizing efficiency.

Alternative Connection Options for Installation Flexibility

With internal and external thread options for suction and pressure sides, along with alternative connection positions, this pump offers versatile installation possibilities to fit various application needs.

Oil-Free Operation with Integrated Silencer

The FDM 07 operates without the need for oil lubrication, reducing maintenance and ensuring clean, contamination-free operation. Additionally, the integrated silencer keeps noise levels low, making it ideal for quiet industrial environments.

Available for Hazardous Area Applications

For industries requiring strict safety compliance, specialized ATEX-certified versions of the FDM 07 are available, ensuring safe operation in hazardous and explosion-prone environments.

Technical Specifications

• Flow Rate: Max. 5 GPM (20 L/min)
• Discharge Pressure: Max. 124 psi
• Suction Lift (Dry): Max. 14 ft
• Suction Lift (Wet): Max. 31 ft
• Maximum Solids Handling: 1.6 mm
• Housing Materials: Polypropylene, Conductive Acetal
• Compatible Fluids: Highly flammable liquids, abrasive and viscous media

Final Words

The FLUX FDM 07 Air-Operated Diaphragm Pump is a highly efficient, compact, and versatile pumping solution for industrial, chemical, and hazardous applications. With energy-efficient operation, non-stall air valve technology, dry-run protection, and self-priming capabilities, this pump is ideal for small-scale yet demanding fluid transfer applications. Whether handling flammable liquids, abrasive substances, or viscous fluids, the FDM 07 guarantees smooth, reliable, and safe performance in every operation.
