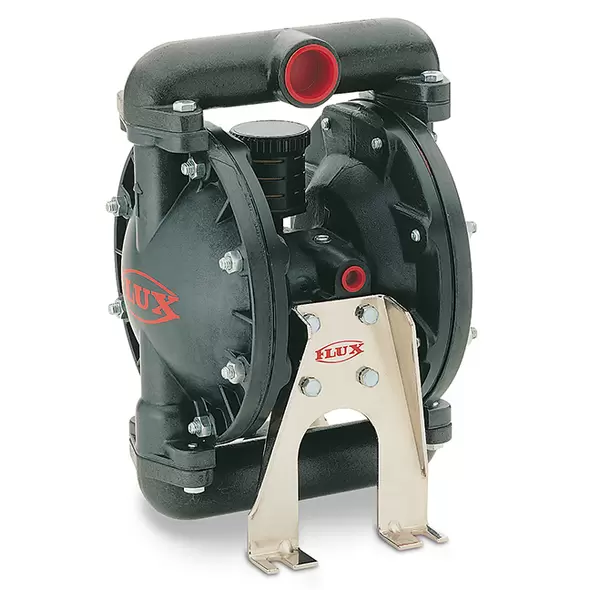

FDM 25

The FLUX FDM 25 air-operated diaphragm pump is an advanced, self-priming solution designed for efficient and reliable fluid transfer in industrial applications. Manufactured in an injection-molded version, this pump is ideal for handling low to high viscosity media, including abrasive, highly flammable, and gas-containing fluids. With dry-run protection, a blockage-free design, and an infinitely adjustable operation, the FLUX FDM 25 offers unmatched flexibility and durability for diverse industries.

Key Features of FLUX FDM 25

Self-Priming and Dry-Run Capabilities

The FLUX FDM 25 is engineered to self-prime even from a completely dry start, ensuring seamless operation without the need for pre-filling. Additionally, the dry-run protection prevents damage when operating without liquid, making it a reliable choice for applications where fluid availability may fluctuate.

Adjustable Flow Rate with Air Pressure Control

With variable delivery rates, the FLUX FDM 25 offers precise flow control by adjusting the air pressure. This eliminates the need for additional bypass control mechanisms, allowing the pump to operate efficiently in diverse process conditions. The unbalanced air valve design further ensures smooth performance without the risk of stalling.

Durable and Maintenance-Friendly Construction

• Designed for long service life, ensuring extended operation without frequent maintenance.
• Oil-free operation prevents contamination, making it suitable for sensitive environments.
• Regulating valve is resistant to foreign matter in the air, reducing operational downtime.
• Fully submersible design allows for usage in immersed conditions without performance loss.
• Blockage-free and infinitely adjustable operation provides smooth fluid handling.

Handles a Wide Range of Fluids

The FLUX FDM 25 is built for versatile media handling, making it suitable for:

• Highly flammable liquids – Ensuring safety and compliance in hazardous areas.
• Abrasive and solid-containing fluids – Withstands wear and tear from particulate matter.
• Viscous and aggressive media – Efficient pumping of thick, chemical-laden, or challenging liquids.
• Liquids with high gas content – Maintains consistent performance in multi-phase flow applications.

Built for Hazardous Environments

The FLUX FDM 25 is available in specialized versions designed for hazardous area applications, ensuring compliance with industry safety standards. Whether in chemical processing, oil & gas, or industrial manufacturing, this pump offers reliable and secure fluid handling.

Technical Specifications

• Maximum Flow Rate: 47 GPM (178 l/min)¹
• Discharge Pressure: Up to 116 psi
• Suction Lift (Dry): 19 ft¹
• Suction Lift (Wet): 24 ft¹
• Max Solid Particle Size: 3.2 mm
• Housing Materials: Aluminum, Stainless Steel, Polypropylene, Polyvinylidene Fluoride
• Suitable Media: Flammable, viscous, abrasive, aggressive, and gas-containing fluids

Note: Performance varies based on the pump model, operating pressure, and flow behavior of the medium.

Final Words

The FLUX FDM 25 air-operated diaphragm pump is an exceptionally versatile and durable pumping solution that excels in industrial fluid transfer applications. With self-priming functionality, dry-run protection, infinitely adjustable flow control, and a blockage-free design, it stands out as a reliable choice for industries requiring high-performance pumping solutions. Whether used in hazardous areas, chemical processing, or fluid transfer operations, the FLUX FDM 25 ensures efficiency, longevity, and operational safety.
