FDM 50

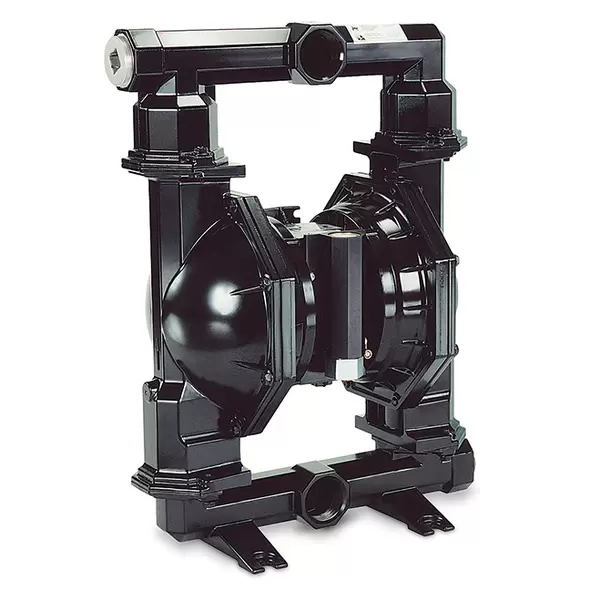

The FLUX FDM 50 air-operated diaphragm pump is a high-performance, self-priming pump designed for industrial fluid transfer applications. With an injection-molded design, this pump delivers exceptional flow capacity while handling low to high viscosity media, including abrasive, highly flammable, and gas-containing fluids. Featuring dry-run protection, infinitely adjustable flow rates, and a blockage-free operation, the FLUX FDM 50 ensures efficiency, durability, and reliability in demanding work environments.

Key Features of FLUX FDM 50

Self-Priming and Dry-Run Protection

The FLUX FDM 50 is designed for self-priming operation, enabling it to start efficiently even when dry. This eliminates the need for manual priming, reducing downtime and ensuring smooth performance. The dry-run protection prevents pump damage when running without liquid, making it an excellent choice for applications where fluid supply may be inconsistent.

Infinitely Adjustable Flow Rate

The FLUX FDM 50 features variable delivery rates that can be controlled through air pressure adjustment. This removes the need for bypass control, allowing precise flow management for different operational needs. The unbalanced air valve design prevents stalling, ensuring continuous and efficient fluid transfer.

Durable and Low-Maintenance Construction

• Oil-free operation keeps the system clean and reduces maintenance requirements.
• Regulating valve design prevents blockages from air impurities.
• Unbalanced air valve ensures stall-free operation for uninterrupted performance.
• Wear-resistant materials contribute to a long service life.
• Fully submersible design allows operation in challenging environments.
• Service-friendly assembly ensures quick and easy maintenance.

Versatile Fluid Handling Capabilities

The FLUX FDM 50 is built for a wide range of fluids, including:

• Highly flammable liquids – Designed for safe and controlled handling.
• Viscous and abrasive media – Capable of handling heavy and particle-laden fluids.
• Aggressive and corrosive chemicals – Resistant to harsh substances for chemical processing.
• Liquids with high gas content – Ensures stable and efficient operation in multi-phase applications.

Ideal for Hazardous and Industrial Applications

The FLUX FDM 50 is available in specialized versions for use in hazardous areas, making it a trusted solution in chemical processing, oil & gas, and industrial manufacturing where safety and reliability are crucial.

Technical Specifications

• Maximum Flow Rate: 171 GPM (650 l/min)¹
• Discharge Pressure: Up to 116 psi
• Suction Lift (Dry): 13 ft¹
• Suction Lift (Wet): 24 ft¹
• Max Solid Particle Size: 6.4 mm
• Housing Materials: Aluminum, Stainless Steel, Grey Cast Iron, Polypropylene, Polyvinylidene Fluoride
• Suitable Media: Flammable, viscous, abrasive, aggressive, and gas-containing fluids

Note: Performance may vary depending on the pump model, operating pressure, and flow behavior of the medium.

Final Words

The FLUX FDM 50 air-operated diaphragm pump is a powerful, high-capacity solution for industrial fluid transfer applications. With self-priming capability, dry-run protection, adjustable flow control, and wear-resistant construction, it is a reliable choice for industries handling highly viscous, abrasive, and chemically aggressive fluids. Whether used in hazardous zones, large-scale manufacturing, or fluid transfer operations, the FLUX FDM 50 delivers exceptional efficiency, durability, and safety.
