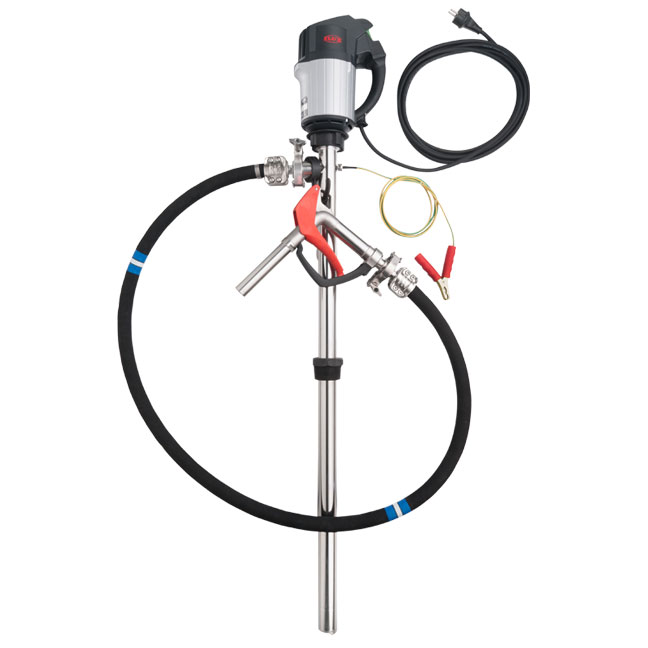

Flammables Kit 1000 120V

For the transfer of highly flammable liquids from 205 l drums or IBC containers, the pre-assembled explosion-protected pump system by Flux Pump can be used, for example with the Flammables Kit 1000 120V. This kit with the stainless steel f 424 sealless drum pump is highly safe, maintenance minimal and service life long. The proprietary sealless design eliminates wear, contamination, and wetted lubricants associated with sealing mechanisms making it suitable for hazardous-area applications involving petroleum products, solvents or other volatile media.

Complete Kit Components

Drum Pump F 424: Stainless Steel Execution

Specifically designed to handle highly corrosive chemicals, the stainless steel F 424 Ex S-43/38 pump´s construction includes relief openings that balance the internal pressure of the system with the pressure of the drum and enable ultra-pure chemicals to escape back into the drum.

Sealless Design

No seal wear and no bearing damage; zero contamination of the pumped medium, by lubricants or seal particles.

Motor Options

• Commutator Motor F 460 Ex with 230V, 50Hz at 460W provides Max. of 13 GPM.
• F 460 Ex EL commutator motor: as described above but with control of the speed offering adjustable flow rates.
• F 416 Ex Compressed-Air Motor: 470W at 87 psi (up to 13 gpm)

Accessories Included

The kit includes a 2m DN 21 universal hose, stainless steel hand nozzle and conductive Polypropylene compression gland for secure connections.

Technical Specifications

• Flow Rate: 63 GPM (240 l/min) Max
• Delivery Head: Up to 42 feet
• Viscosity: 1 cPs to 800 cPs
• Passing Outside (Outer Tube) Diameter: 43 mm
• Level detection Sump depth 570 mm Drum immersion lengths: 1000 mm and IBCs at 1200 mm
• Outer Tube Material: Stainless steel
• Seal Type: Sealless
• Liquids/Fluids: Fuels, Flammable liquids, Solutions
• Compatible Containers: Drums and IBCs
• Safety Rating: Explosion-protected (Ex)
• Key Features and Benefits
• Explosion Protection for Hazardous Areas
• Ex rated for safe handling of (and varies).

Dry-Running Capability

The pump is dry running tolerant (which means that the pump block may be operated without liquid) which lowers operational risks and prevents downtime unnecessary.

Low Wear and Maintenance

By eliminating seals or bearings in the liquid area, the system provides longer service life and lower maintenance costs.

No Cross-Contamination

This design guarantees that the pumped medium is not contaminated by lubricants or seal wear products.

Application Suitability

Suitable for chemical plants, refineries, paint and solvent handling installations and wherever the safe and efficient contamination-free liquid transfer is required.

Recommendations

If you have highly flammable media and need an explosion proof pumping solution that requires little maintenance, the Flammables Kit 1000 120V is the best solution. The sealless stainless steel pump, explosion-rated motors and flexible immersion capabilities of the Mini AODD add up to a versatile, reliable choice for liquid handling in hazardous areas.
