Description

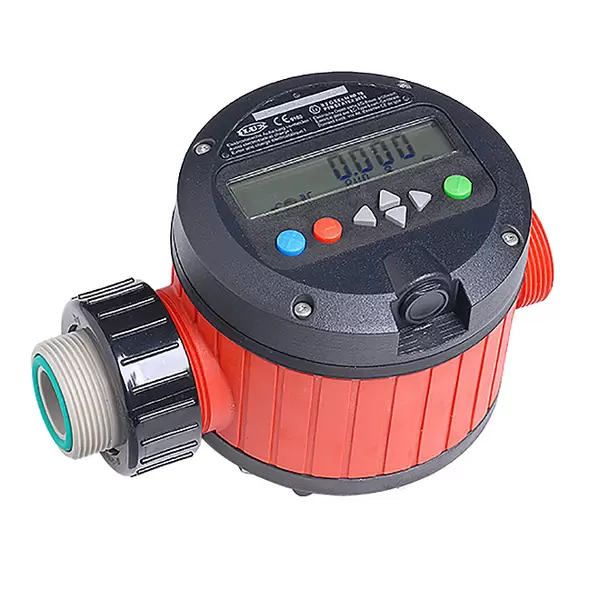

The FMC 100 nutating disc flow meter is a precision instrument designed for use with FLUX drum pumps and fixed-pipework applications. It ensures highly accurate and safe batching and dosing of various liquids, making it an excellent choice for industries that require precision in fluid measurement. Whether operating manually or in semi-automatic mode, this advanced flow meter provides superior performance, reliability, and efficiency.
With the integration of FLUXTRONIC®, the FMC 100 allows for seamless batching, metering, and dosing with excellent control. When paired with accessories like the FAE hand nozzle and FSV amplifier, it enables one-touch batching with automatic shutoff, ensuring precision and safety in every operation.
Key Features and Advantages
Advanced Nutating Disc Technology
The FMC 100 operates on a nutating disc principle, which ensures accurate and reliable flow measurement. This technology is widely recognized for its ability to provide precise results across a variety of applications.
Optimized for Low Viscosity Media
Designed to handle low-viscosity fluids efficiently, this flow meter is ideal for use with a range of liquids, including acids, alkalis, petroleum products, and aqueous salt solutions.
Exceptional Measuring Accuracy
With a filling accuracy of ±1.5%, the FMC 100 ensures precise batching and dosing, reducing waste and improving efficiency in fluid handling processes.
Simple Calibration and Maintenance
The FMC 100 is engineered for easy calibration, allowing users to adjust settings effortlessly. Maintenance is also straightforward, ensuring minimal downtime and maximum productivity.
Batch Operation for Increased Efficiency
In automatic mode, the FMC 100 allows for batch operations, enhancing workflow efficiency. The system can be easily integrated into automated processes, making it ideal for industrial applications.
Durable and High-Resistant Build
Constructed from high-quality materials such as polypropylene, stainless steel, and ETFE, this flow meter is highly resistant to chemicals, high temperatures, and harsh environmental conditions.
Capability to Handle Solids
Unlike many flow meters that are sensitive to particulate matter, the FMC 100 can manage solid particles up to 1.5 mm in size, expanding its usability across various applications.
Seamless Integration with Control Systems
Designed for compatibility with FLUXTRONIC® and external control units like PLCs, this flow meter can be seamlessly integrated into automated systems, providing enhanced control and operational efficiency.
Explosion-Proof Models Available
For industries requiring additional safety measures, the FMC 100 offers models suitable for hazardous and explosion-proof environments, ensuring compliance with stringent safety regulations.
Technical Specifications
• Flow Rate: 2 - 26 GPM (10 - 100 l/min)
• Filling Accuracy: ±1.5%
• Maximum Operating Pressure:
- PP/ETFE: 58 PSI (4 bar)
- Stainless Steel (S): 87 PSI (6 bar)
• Maximum Solids Size: 1.5 mm
• Maximum Viscosity: 2500 cPs
• Material Housing: Polypropylene, Stainless Steel, ETFE
• Compatible Fluids: Acids, Alkalis, Petroleum Products, Flammable Media, Solvents, Fuels, Aqueous Salt Solutions
Final Words
The FMC 100 nutating disc flow meter is a top-tier solution for industries that require precise liquid measurement and batching. Whether used manually or in automated settings, its high accuracy, easy calibration, and durable construction make it an indispensable tool for fluid handling. With the ability to integrate into advanced control systems and support batch operations, it ensures efficiency and reliability in every application.
