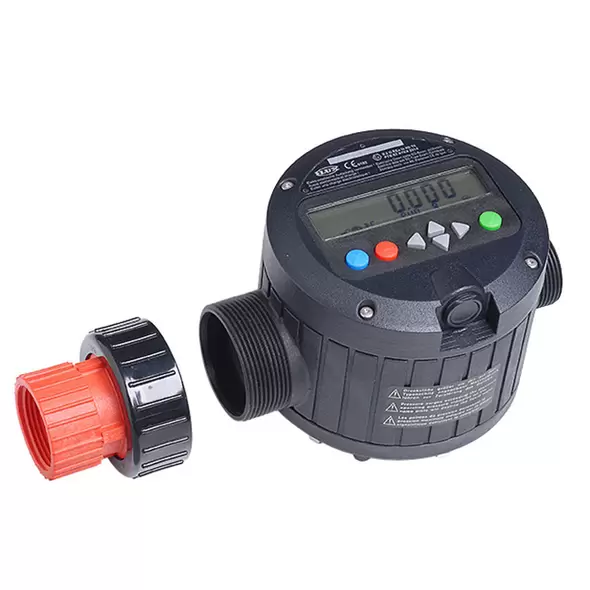

FMJ 100 For Manual Filling Of Various Fluids

The FMJ 100 is a reliable and cost-effective nutating disc flow meter designed for manual liquid filling. As a low-cost alternative to the FMC 100, it is ideal for applications that do not require automated operation. Whether used with FLUX drum pumps or integrated into stationary piping systems, the FMJ 100 provides accurate and efficient liquid measurement without requiring mains connections.

This flow meter supports seamless integration with FLUXTRONIC®, allowing precise dosing and filling of a wide range of fluids. With its robust construction, ease of use, and high accuracy, the FMJ 100 is a valuable tool for industries needing reliable fluid measurement in manual operations.

Key Features and Advantages

Nutating Disc Technology for Precision Measurement

The FMJ 100 operates on a nutating disc principle, ensuring accurate flow measurement. This proven technology delivers reliable and consistent results across various manual liquid-filling applications.

Low-Cost Alternative for Manual Use

Designed as a budget-friendly option to the FMC 100, the FMJ 100 is perfect for operations that do not require automatic batching but still demand high precision and efficiency.

Optimized for Low Viscosity Media

This flow meter is ideal for handling low-viscosity fluids such as acids and alkalis, making it suitable for industries that require accurate measurement of these liquids.

Exceptional Measuring Accuracy

With a measurement error of just ±1.5%, the FMJ 100 ensures precision in every fill, reducing liquid waste and improving operational efficiency.

Easy Calibration for User Convenience

Simple and straightforward calibration makes the FMJ 100 easy to adjust for specific applications, ensuring precise measurement every time.

No Mains Connection Required

Unlike many flow meters that require an external power source, the FMJ 100 operates without mains connections, allowing flexible use in various manual filling stations.

Reliable Operation and Durable Construction

Manufactured with high-quality polypropylene housing, this flow meter is highly resistant to chemical exposure and designed for long-term reliability in demanding environments.

Handles Small Solid Particles

Unlike other meters that may struggle with particulate matter, the FMJ 100 can handle solid particles up to 1.5 mm in size, making it versatile across different fluid types.

Seamless Integration with External Control Systems

The FMJ 100 can transmit signals to FLUXTRONIC® or an external control unit such as a PLC, enabling better process monitoring and integration into broader fluid handling systems.

Effortless Assembly and Maintenance

With an easy-to-handle design, the FMJ 100 ensures quick assembly and minimal maintenance requirements, allowing operators to focus on productivity without extensive downtime.

Technical Specifications

• Flow Rate: 2 - 26 GPM (10 - 100 l/min)
• Measurement Accuracy: ±1.5%

• Maximum Operating Pressure: 58 PSI

• Maximum Solid Particle Size: 1.5 mm
• Maximum Viscosity: 2500 cPs
• Material Housing: Polypropylene
• Compatible Fluids: Acids, Alkalis

Final Words

The FMJ 100 flow meter is the perfect solution for manual fluid filling applications that require high precision at an economical cost. Its nutating disc technology, ease of use, and reliable operation make it an excellent choice for industries handling low-viscosity fluids. With no need for mains connections, easy calibration, and seamless integration with external control systems, the FMJ 100 ensures efficient and accurate manual liquid measurement.
