Description

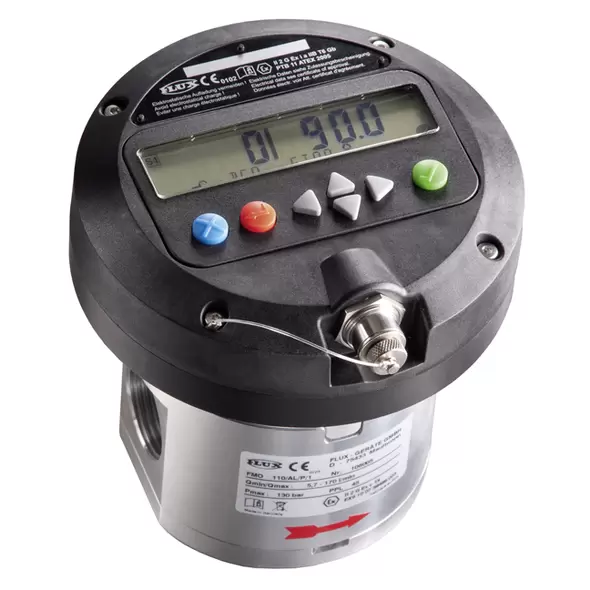

The FMO 104 oval rotor flow meter is designed for precise liquid measurement across a broad viscosity range. Whether used in piping systems or automated batching processes, this high-accuracy flow meter ensures seamless performance with exceptional repeatability. Compatible with FLUXTRONIC®, the FMO 104 enables precise dosing, batching, and metering with a high level of control and safety.
Built with durable stainless steel and aluminum housing, this flow meter is resistant to harsh chemicals and is suitable for industries handling acids, alkalis, petroleum products, and flammable media. Additionally, its ability to handle pulsating volume flows and extreme viscosity variations makes it a reliable choice for industrial fluid handling.
Key Features and Advantages
Advanced Oval Rotor Technology
The FMO 104 is built with an oval rotor mechanism, ensuring highly accurate flow measurement for thin to highly viscous fluids. This precision technology provides excellent repeatability, making it ideal for industrial dosing and batching.
Exceptional Measurement Accuracy
• For fluids < 5 cPs: ±2% measurement error
• For fluids > 5 cPs: ±0.5% measurement error
This level of accuracy ensures efficient fluid management and reduced waste in various industrial applications.
Broad Viscosity Handling
With a viscosity range of up to 500,000 cPs, the FMO 104 is capable of measuring both low-viscosity solvents and extremely thick fluids, making it one of the most versatile flow meters in its class.
Seamless Integration with Control Systems
The FMO 104 can transmit signals to FLUXTRONIC® or an external PLC, allowing for automated batching, metering, and process control in industrial setups.
Multi-Unit Display for Flexible Use
Operators can choose to display measurements in liters, gallons, or kilograms, providing adaptability for various operational requirements.
Semi-Automatic and Batch Operation
With a switching amplifier, the FMO 104 supports semi-automatic filling, while in automatic mode, it enables one-touch batching and metering when paired with the FAE hand nozzle and FSV amplifier.
Low Pressure Loss for Optimal Efficiency
Designed to maintain stable flow measurement, this flow meter minimizes pressure loss, ensuring uninterrupted operation even in complex fluid systems.
Built for Harsh Industrial Environments
Constructed with stainless steel and aluminum, the FMO 104 offers excellent resistance to chemicals, high pressures, and extreme conditions, ensuring long-lasting performance.
Explosion-Proof and FDA-Compliant Options
For industries requiring explosion-proof models, the FMO 104 is certified for hazardous Zone 1 applications. Additionally, an FDA CFR 21-compliant version is available, making it suitable for food and pharmaceutical applications.
Technical Specifications
• Flow Rate: 0.52 - 6 GPM (2 - 25 l/min)
• Measurement Accuracy:
- For fluids < 5 cPs: ±2%
- For fluids > 5 cPs: ±0.55
• Maximum Operating Pressure:
- Aluminum Model: 1885 PSI
- Stainless Steel Model: 2900 PSI
• Maximum Viscosity: 500,000 cPs
• Material Housing: Stainless Steel, Aluminum
• Compatible Fluids: Acids, Alkalis, Petroleum Products, Flammable Media, Solvents, Fuels
Final Words
The FMO 104 is a highly reliable and precise flow meter designed for industries requiring accurate liquid measurement across a wide range of viscosities. Whether used in automated dosing, batch processing, or hazardous environments, this flow meter offers durability, seamless control integration, and exceptional measurement accuracy. With FDA-compliant versions available, the FMO 104 is also suitable for specialized applications in food and pharmaceutical industries.
