FMO 110 Flow Meter For 2 - 39 Gpm

In stock
0.00
(0 reviews) Write a review
Brand: FLUX Pumps
Request Quote
Chat Now
  • Oval Rotor Technology: Ensures precise and repeatable fluid measurement.
  • Wide Flow Rate: Handles liquids from 2 - 39 GPM with high accuracy.
  • High Accuracy: ±2% for low-viscosity and ±0.5% for high-viscosity fluids.
  • PLC Integration: Compatible with FLUXTRONIC® and external control units.
  • Batch Operation: Supports automatic dispensing and one-touch shutoff.
  • Durable Construction: Built with PVDF, stainless steel, and aluminum.
  • Low Pressure Loss: Optimized design for stable flow measurement.
  • Explosion-Proof Model: Stainless steel version available for hazardous areas.
  • Food-Grade Option: Compliant with EC 1935/2004 and FDA CFR 21 standards.

Tell us what you need

+
FMO 110 Flow Meter For 2 - 39 Gpm
In stock
0.00
(0 reviews) Write a review

Description

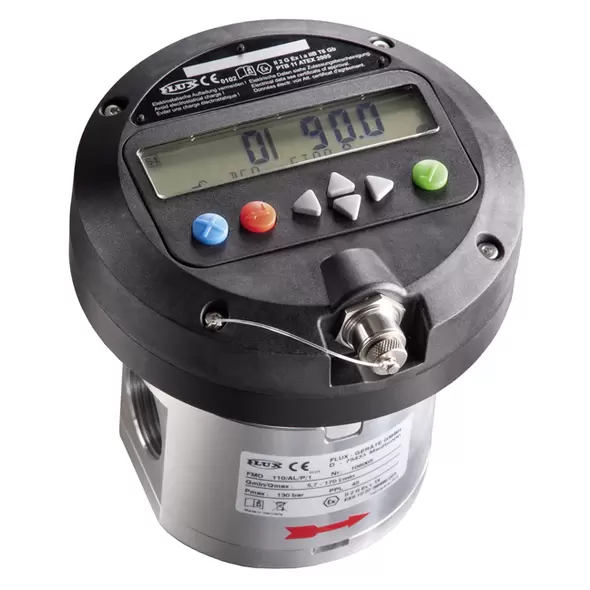

The FMO 110 is a precision-engineered oval rotor flow meter designed for industrial fluid measurement and control. Capable of handling a broad range of viscosities, from thin solvents to highly viscous fluids, this flow meter ensures precise batching, metering, and dosing with FLUXTRONIC® integration.

With its ability to operate in automatic and semi-automatic modes, the FMO 110 is ideal for piping systems, process industries, and applications requiring high accuracy. Built with durable materials such as polyvinylidene fluoride (PVDF), stainless steel, and aluminum, it offers excellent resistance to harsh chemicals and extreme conditions. Additionally, a food-grade version compliant with EC 1935/2004 and FDA CFR 21 standards is available for food and pharmaceutical applications.

Key Features and Advantages

Advanced Oval Rotor Technology for High Precision

The FMO 110 utilizes an oval rotor design to ensure highly accurate and repeatable flow measurement across a broad range of liquid viscosities.

Wide Flow Rate and Viscosity Handling

With a flow rate of 2 - 39 GPM and viscosity handling up to 500,000 cPs, this meter is versatile enough to measure both thin and highly viscous fluids efficiently.

Exceptional Measurement Accuracy

For fluids < 5 cPs: ±2% measurement error
For fluids > 5 cPs: ±0.5% measurement error
This high level of accuracy makes it a reliable tool for industrial dosing and batching applications.

Seamless Integration with Control Systems

The FMO 110 can transmit signals to FLUXTRONIC® or an external PLC, allowing for automated and precision-controlled batching, metering, and monitoring.

Multi-Unit Display for Flexibility

Operators can choose to display measurements in liters, gallons, or kilograms, depending on their application requirements.

Semi-Automatic and Batch Operation

With a switching amplifier, the FMO 110 enables semi-automatic filling, while batch operation ensures precise one-touch dispensing when paired with the FAE hand nozzle and FSV amplifier.

Durable and High-Resistance Materials

Built with stainless steel, aluminum, and PVDF, this flow meter offers exceptional resistance to chemicals, solvents, fuels, and highly flammable media.

Low Pressure Loss for Efficiency

The FMO 110 is designed to maintain stable flow measurement with minimal pressure loss, ensuring optimal performance in various industrial settings.

Explosion-Proof and Food-Grade Options

  • Explosion-proof model: The stainless steel version is certified for Zone 1 hazardous applications.
  • Food-safe model: Available in a version compliant with EC 1935/2004 and FDA CFR 21, making it suitable for food, beverage, and pharmaceutical applications.

Technical Specifications

Flow Rate: 2 - 39 GPM (9 - 150 l/min)
Measurement Accuracy:

  • For fluids < 5 cPs: ±2%
  • For fluids > 5 cPs: ±0.5%

 • Maximum Operating Pressure:

  • PVDF Model: 145 PSI
  • Aluminum Model: 1885 PSI
  • Stainless Steel Model: 2900 PSI
  • Stainless Steel Clamp Model: 232 PSI
    Maximum Viscosity: 500,000 cPs
    Material Housing: Polyvinylidene Fluoride (PVDF), Stainless Steel, Aluminum
    Compatible Fluids: Acids, Alkalis, Petroleum Products, Flammable Media, Solvents, Fuels

Final Words

The FMO 110 oval rotor flow meter is a highly accurate and versatile solution for industrial and food-grade liquid measurement. Its ability to handle a wide viscosity range, integrate with control systems, and support automatic batching makes it an essential tool in chemical, petroleum, food, and pharmaceutical industries. With explosion-proof and FDA-compliant options, the FMO 110 ensures reliability, safety, and efficiency in demanding applications.
