Izmag Electromagnetic Flow Meter

In stock
0.00
(0 reviews) Write a review
Brand: FLUX Pumps
Request Quote
Chat Now
  • Precision Measurement: Delivers accurate flow measurement for sanitary applications.
  • Compact Design: Allows easy installation even in confined spaces.
  • Durable Build: Stainless steel and PFA liner ensure high resistance and longevity.
  • Clear Digital Display: LED display offers numeric and graphical flow visualization.
  • Wide Flow Range: Measures from 0.14 to 1,200 GPM efficiently.
  • Temperature Flexibility: Supports process temperatures up to 325°F.
  • Explosion-Proof Certified: Suitable for use in demanding hygienic environments.
  • Versatile Outputs: Multiple communication options (analog, digital, Ethernet IP).
  • Easy Maintenance: User-friendly interface simplifies calibration and operation.

Tell us what you need

+
Izmag Electromagnetic Flow Meter
In stock
0.00
(0 reviews) Write a review

Description

The IZMAG Electromagnetic Flow Meter from Anderson-Negele is engineered to deliver exceptional precision and reliability, specifically tailored for the rigorous demands of sanitary processing environments. Building upon the established strengths of its predecessors, the IZMAG brings together an advanced design and cutting-edge performance features, making it an indispensable solution for accurate fluid measurement in hygienic production facilities. This innovative flow meter provides precise metering performance in demanding industries, including food, beverage, pharmaceutical, and chemical processing applications.

The compact design of the IZMAG ensures straightforward installation, even in confined or tightly spaced environments. Featuring a robust stainless steel housing complemented by an advanced PFA liner, it achieves exceptional durability and compatibility with diverse fluid types. With its 3-A, CE, and ETL certifications, the meter meets strict global standards, ensuring safety, compliance, and operational excellence in every application.

Key Features of IZMAG Electromagnetic Flow Meter

Compact and Robust Construction

The IZMAG boasts a compact overall profile, designed for hassle-free installation in constrained spaces typical of sanitary facilities. Its rugged housing made from 316L stainless steel and high-grade PFA liner enhances resistance to pressure, temperature fluctuations, and vacuum conditions, enabling reliable measurement under challenging operational scenarios.

High-Accuracy Flow Measurement

Capable of precisely monitoring flow rates from 0.14 to 1,200 GPM (0.53-4,667 LPM), the IZMAG Electromagnetic Flow Meter delivers accurate measurements with a standard accuracy of ±1% or better (±1 mm/sec). This level of accuracy provides operational reliability, particularly crucial in food and beverage, pharmaceutical, and biotechnological processes where precision is paramount.

Robust Construction for Sanitary Conditions

The meter features an IP67-rated enclosure, designed to withstand aggressive cleaning cycles common in hygienic environments. With materials such as 316L stainless steel, EPDM, silicone, and Viton, the IZMAG accommodates fluids across a wide temperature range (32-325°F / 0-163°C), ensuring maximum adaptability and long-term durability.

Innovative Features and User-Friendly Operation

Interactive Digital Display

Equipped with a clear, illuminated graphic display, the IZMAG provides instant visibility of real-time flow data through numeric values and intuitive graphical visuals. Operators can conveniently adjust the display angle or relocate it to ensure optimal visibility, reducing errors and enhancing ease of operation.

Flexible Connectivity and Communication

The IZMAG Electromagnetic Flow Meter integrates seamlessly with modern industrial automation systems through versatile output options. It features pulse outputs, 4-20mA analog signals (active/passive), and digital Ethernet IP communication capabilities. The unit also includes multiple M16 ports and ½” conduit adapters, ensuring straightforward connectivity to PLCs or other control infrastructures.

Integrated Control Input

The built-in control input (9-32 VDC) further extends its versatility, allowing for comprehensive remote control and monitoring. Operators can customize batching processes, ensuring consistent and precise fluid transfer throughout various stages of production.

Temperature Adaptability

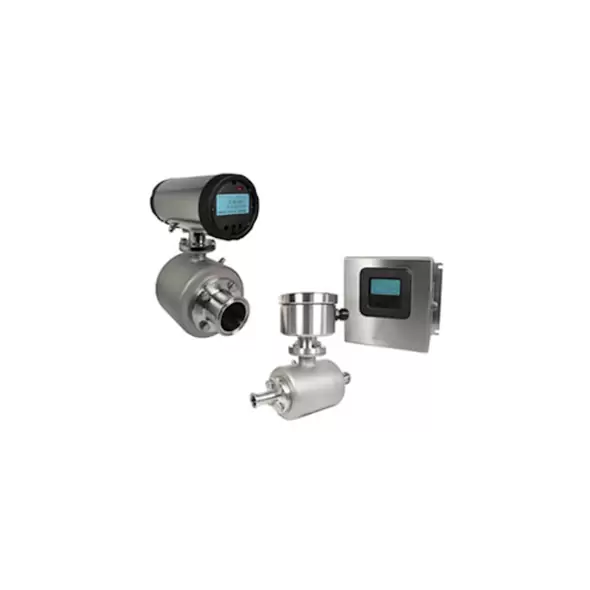

Designed with adaptability in mind, the IZMAG offers separate electronic units: integral electronics support process temperatures up to 212°F (100°C), while remote electronics accommodate temperatures up to 325°F (163°C). This flexibility makes it suitable for high-temperature applications typically encountered in food, beverage, pharmaceutical, and other critical sanitary industries.

Technical Specifications

  • Flow Range: 0.14-1,200 GPM (0.53-4,667 LPM)
  • Measurement Accuracy: ±1% (±1 mm/sec)
  • Process Temperature:
    • Integral Electronics: 32-212°F (0-100°C)
    • Remote Electronics: 32-325°F (0-163°C)
  • Ambient Temperature: -12 to 130°F
  • Operating Pressure: Maximum 10 bar
  • Materials: 316L Stainless Steel, PFA liner, EPDM, Silicone (>250°F), Viton
  • Enclosure Rating: IP67
  • Approvals: ETL, CE, 3-A
  • Connection Type: Tri-clamp, Cherry I-line
  • Power Requirements: 9-32 VDC
  • Output Signals: Digital pulse, 4-20mA analog, Ethernet IP communication
  • Control Inputs: 9-32 VDC, R<3.2kohms

Final Words

The IZMAG Electromagnetic Flow Meter delivers unparalleled precision, reliability, and durability for demanding sanitary processing applications. Its superior electromagnetic measurement technology, combined with versatile connectivity options and durable construction, positions it as an optimal solution for accurate liquid management. Whether in pharmaceutical, food and beverage, chemical, or hygienic processing, the IZMAG consistently meets and exceeds industry expectations. For businesses prioritizing accuracy, durability, and operational ease, the IZMAG Electromagnetic Flow Meter stands as a top-tier investment.
